SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.47 cu.ft. (70 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Shipping Weight | 103.0 lbs. (47 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086149 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Drawers |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -25° to -15°C |
AVAILABLE UPGRADES
| Handle | |
|---|---|
|
|
| Exterior | |
|
FEATURES
ETL-S listed to ANSI-NSF Standard 7 for commercial use
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Curved handle in brushed stainless steel offer an easier grip and attractive style
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

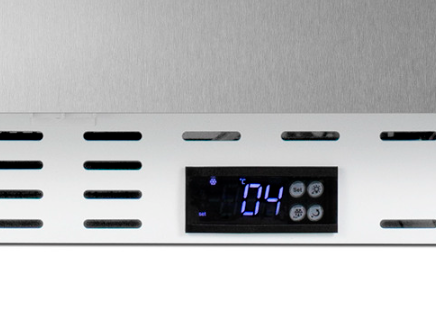

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Audible alarm will sound if the door is left ajar for over a minute
Secure three-pronged cord offers a tighter fit in wall sockets
More temperature stability with an energy efficient manual defrost system
Temperature remains more stable with a static cooling system
User-reversible stainless steel door for added flexibility to best accommodate your setting
Space-saving design that offers easier cleanability
Quality door gaskets ensure a tight seal for energy savings and improved performance
This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set
Allows the unit to be freestanding
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25° and -15°C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.
