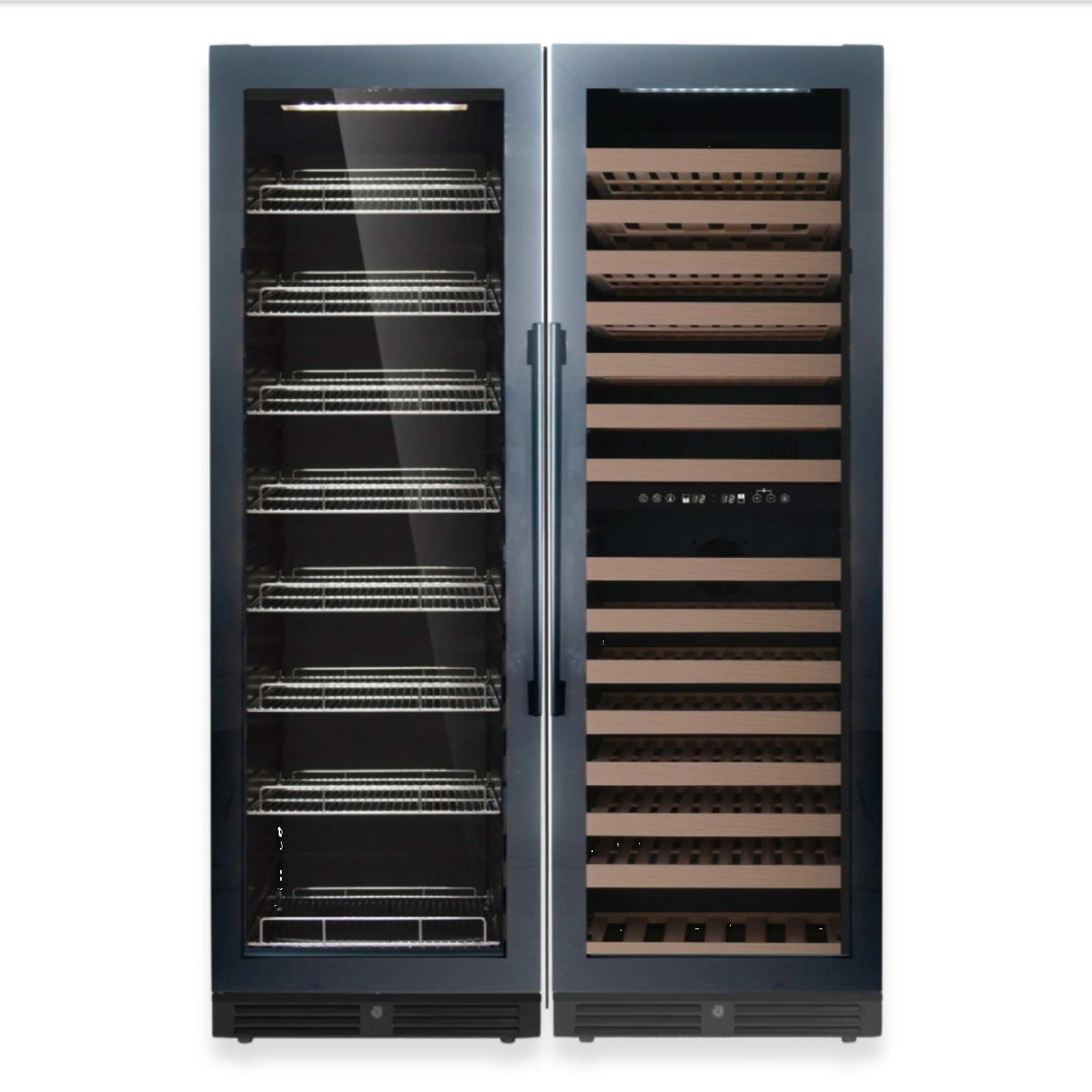

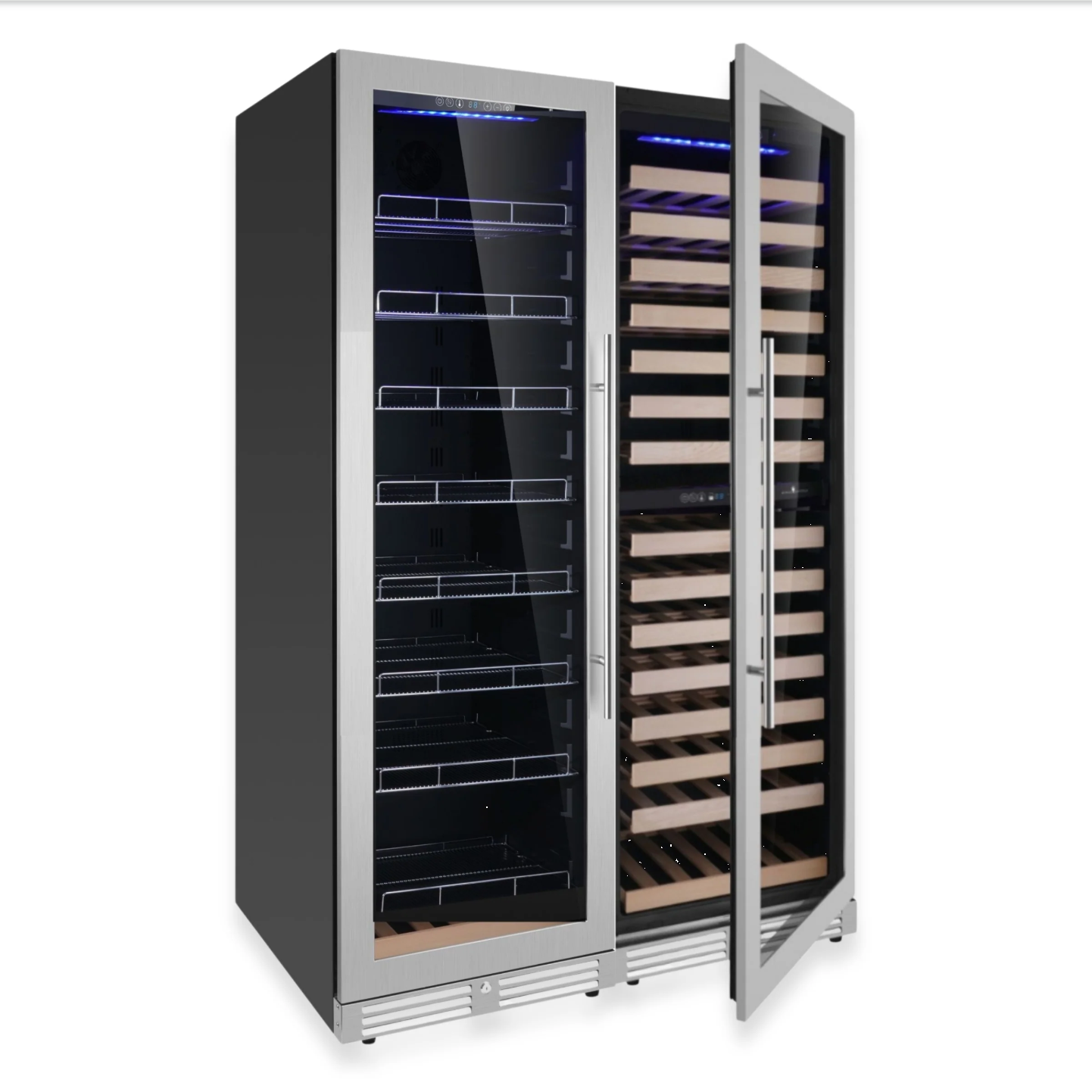

Quick Overview
- Triple-Zone Storage Combo: Set of 2 units delivering three independent zones—dual-zone wine cooling (red/white) plus a dedicated beverage compartment.
- Low‑E Glass Door: Minimizes condensation and blocks UV rays for a crystal-clear, pristine display.
- Energy-Efficient Inverter Compressor: Provides ultra-quiet, precise cooling for reliable temperature management.
- Elegant Upright Design: Offers a sleek, space-saving solution ideal for upscale commercial and residential settings.
Description

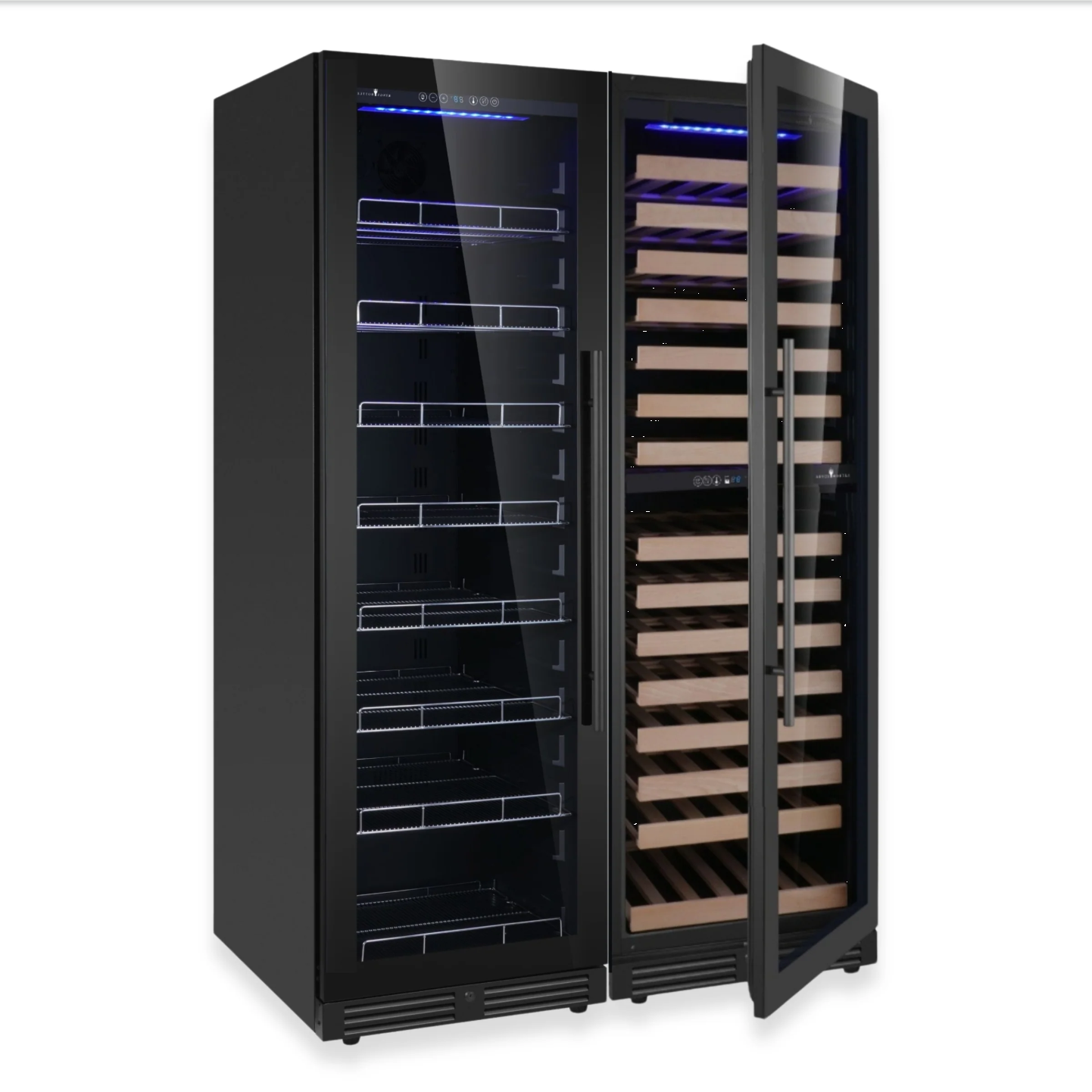

The Upright Wine & Beverage Cooler Combo with Triple Temp Zones is the ideal solution for storing both wine and beverages in one sleek unit. The dual-zone wine cooler ensures your red and white wines are stored at their optimal temperatures. The beverage section stores your favorite drinks, with separate temperature control for each zone.
Powered by the Embraco Inverter Compressor, this unit offers ultra-quiet, energy-efficient cooling. The Low-E glass door ensures UV protection, preserving the integrity of your wine and drinks.
With adjustable shelving and a modern stainless steel finish, this unit is perfect for freestanding or built-in installation.
Specifications
Specifications
| Volume: | 30 CF (850 Liters) Total, 15 CF (425 Liters) Each |

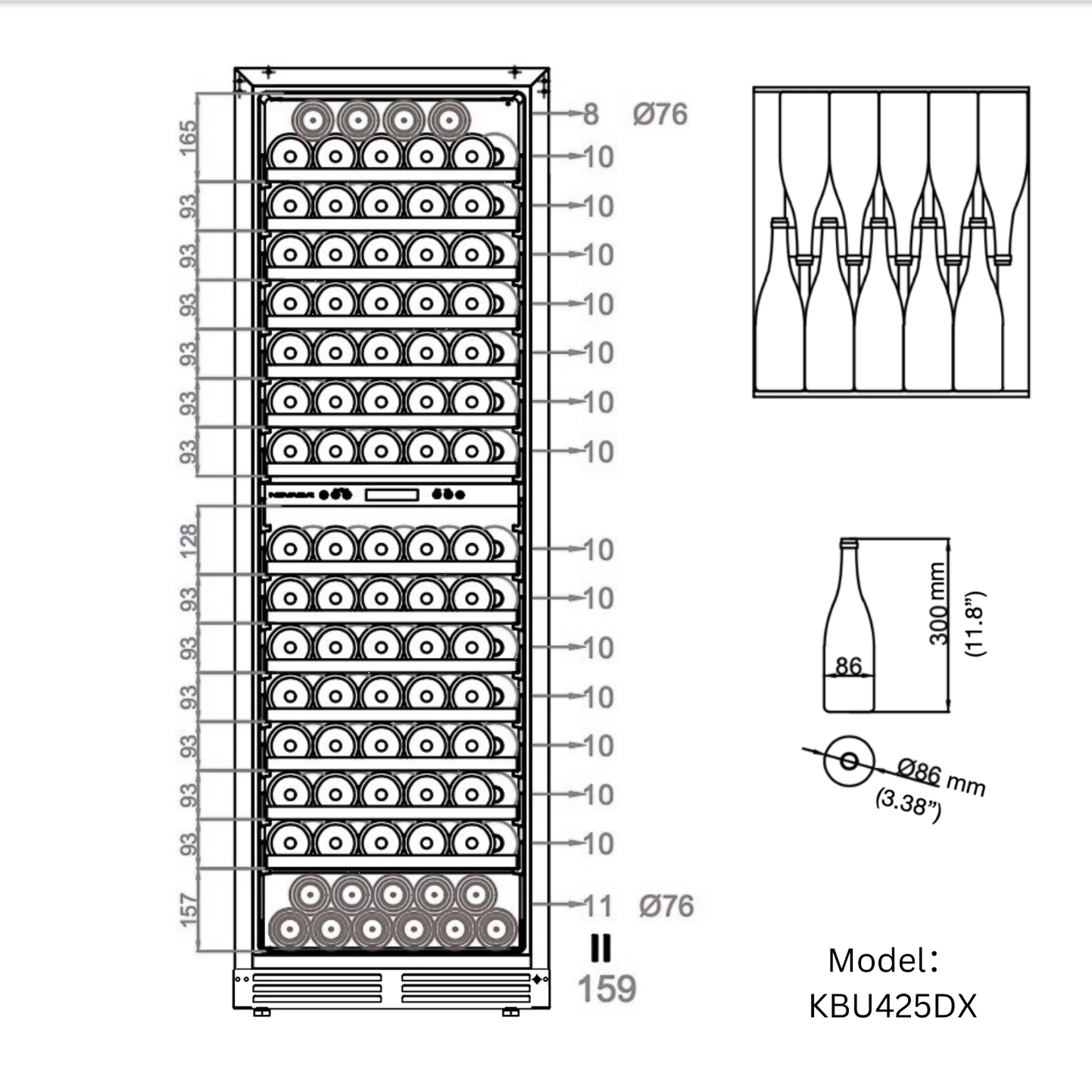

| Capacity (by bottles): | 159 bottles |

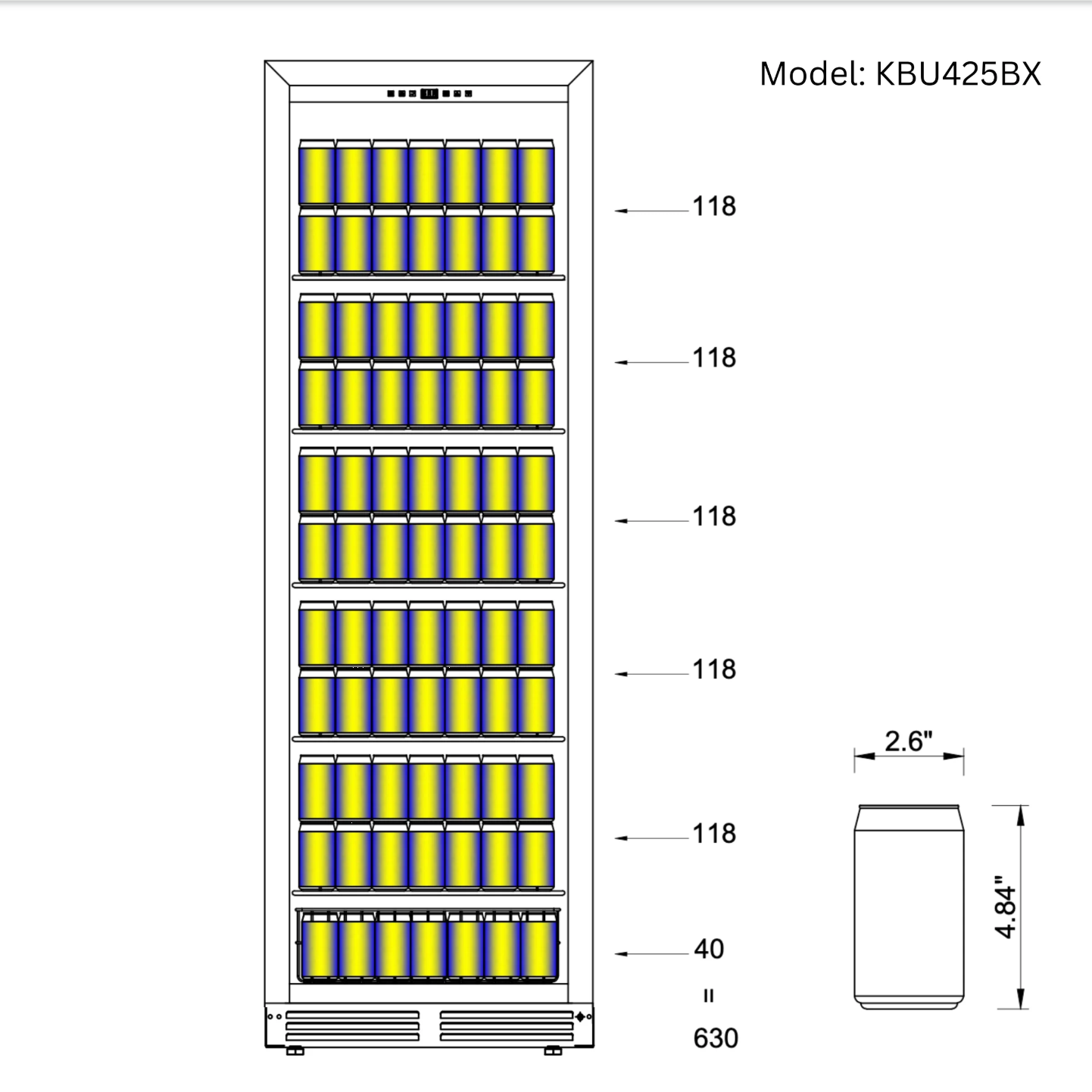

| Capacity (by cans): | 630 cans |
| Installation Type: | Built-In or Freestanding |
| Climate Type: | N |
| Temperature Zones: | Triple Zone |
| Adjustable Temperature Range: |
|
| Operating Room Temperature: | 32-100°F (0-38°C) |
| Shelf Configuration: | 8 Chromed Steel Shelves + 15 Beech Wooden Shelves |
| Dimensions: | 46.84” W x 27.36” D x 70.86” H, included stand height 0.59” |
Electrical
| Compressor: | Embraco Inverter Compressors |
| Power Supply: | 110-115V/60HZ |
| Rated Power Input (W): | 330W (165W per unit) |
| Rated Current: | 3.4A (1.7A per unit) |
| Refrigerant: | R600A / 52g per unit |
Technical Features
Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.
Patented Sink of Compressor
Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.
Low-E Glass
Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.
Fan Circulated Air-Cooling System
Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.
Activated Carbon Filter
Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.

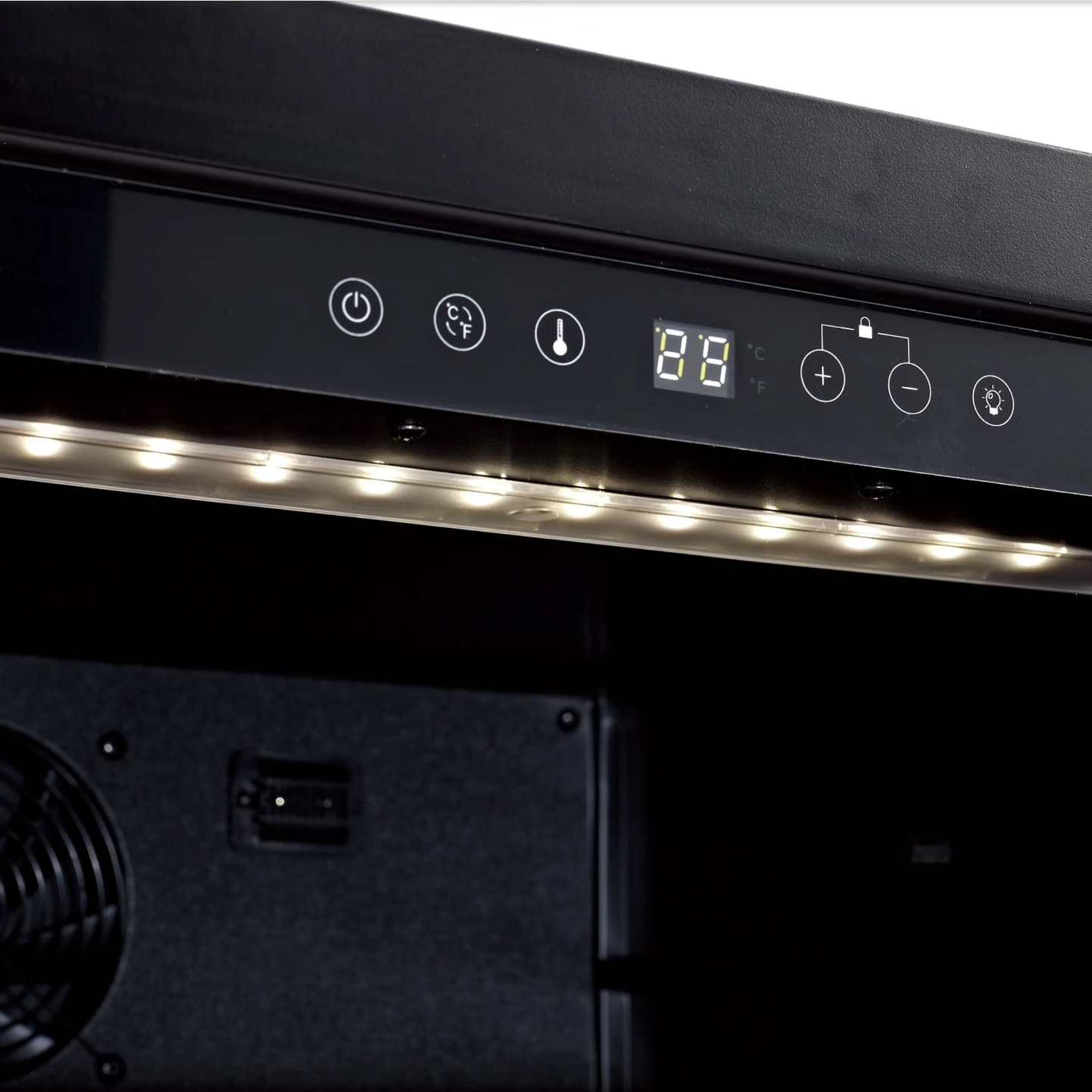

LED Display Digital Touchpad Control
Simple and easy-to-operate controls;
Clear and accurate settings display.

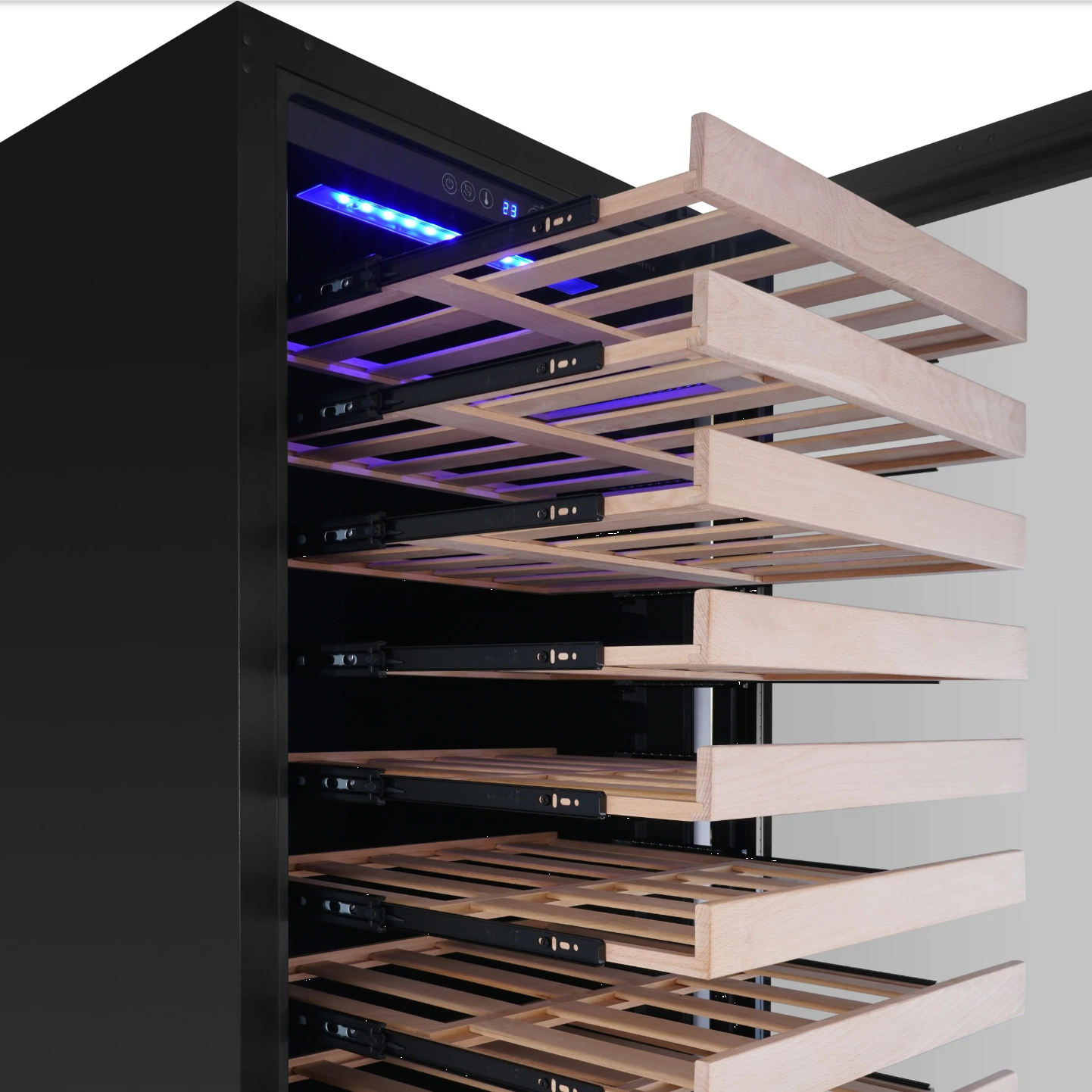

Beech Wooden Shelf
Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.
Magnetic Switch
2-minute door-open alarm.
Hidden Door Hinge
Laminated steel plate with integrated molding;
Full built-in design for seamless integration.

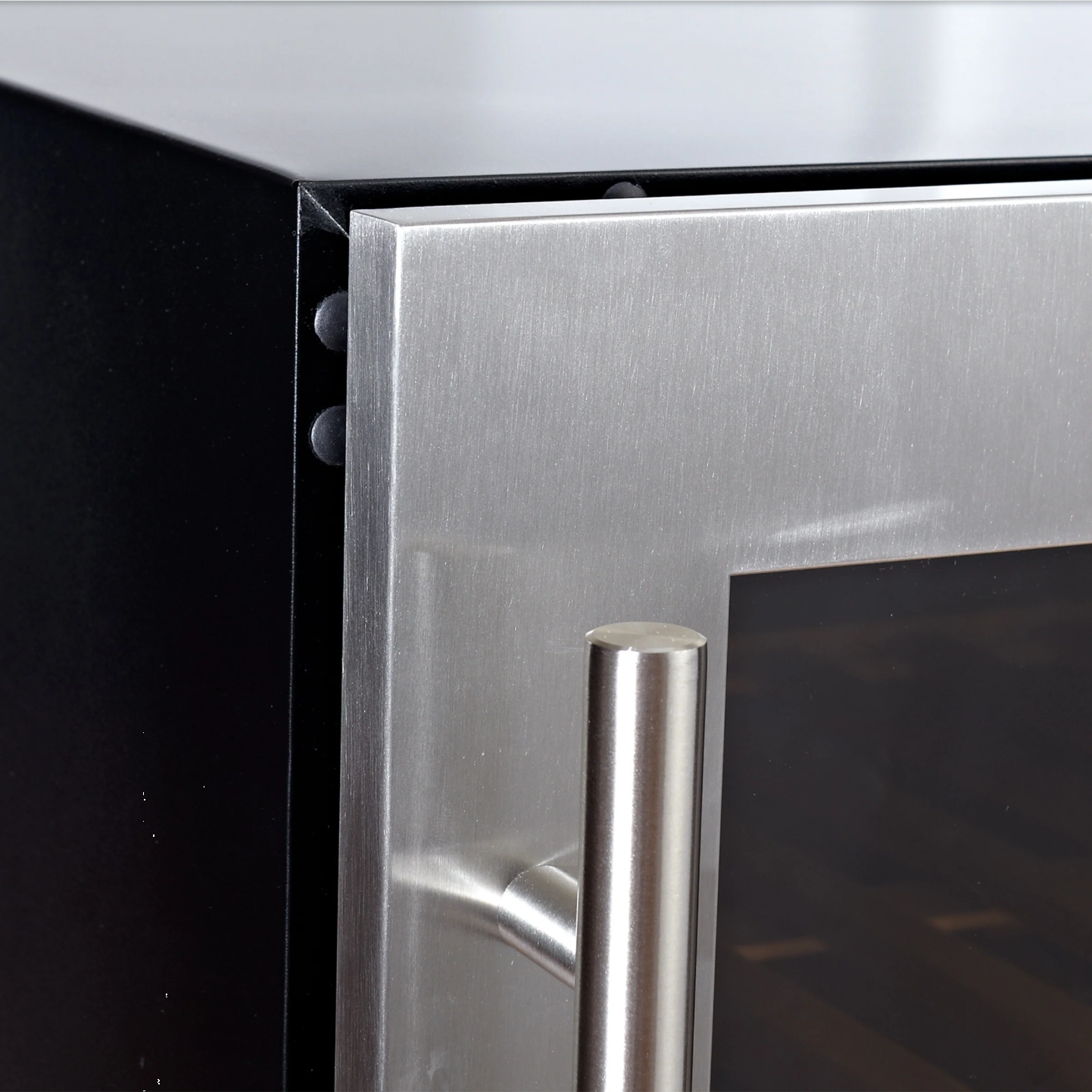

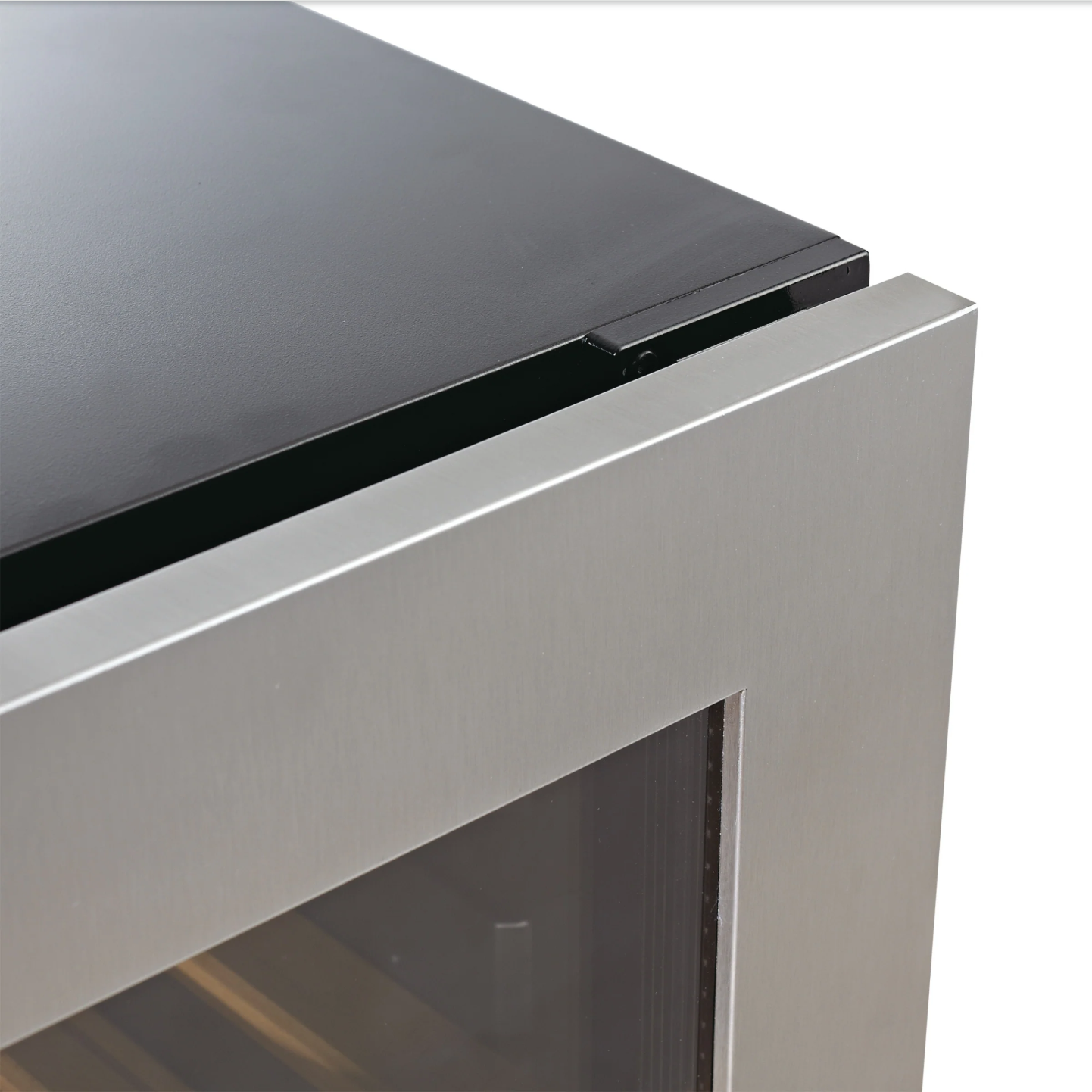

Seamless Stainless Steel Door Frame
Features an artistic appearance with a thin door design.
45mm Thickness C-Pantane
Thicker foam optimizes cooling performance and reduces energy consumption.
Dimensions

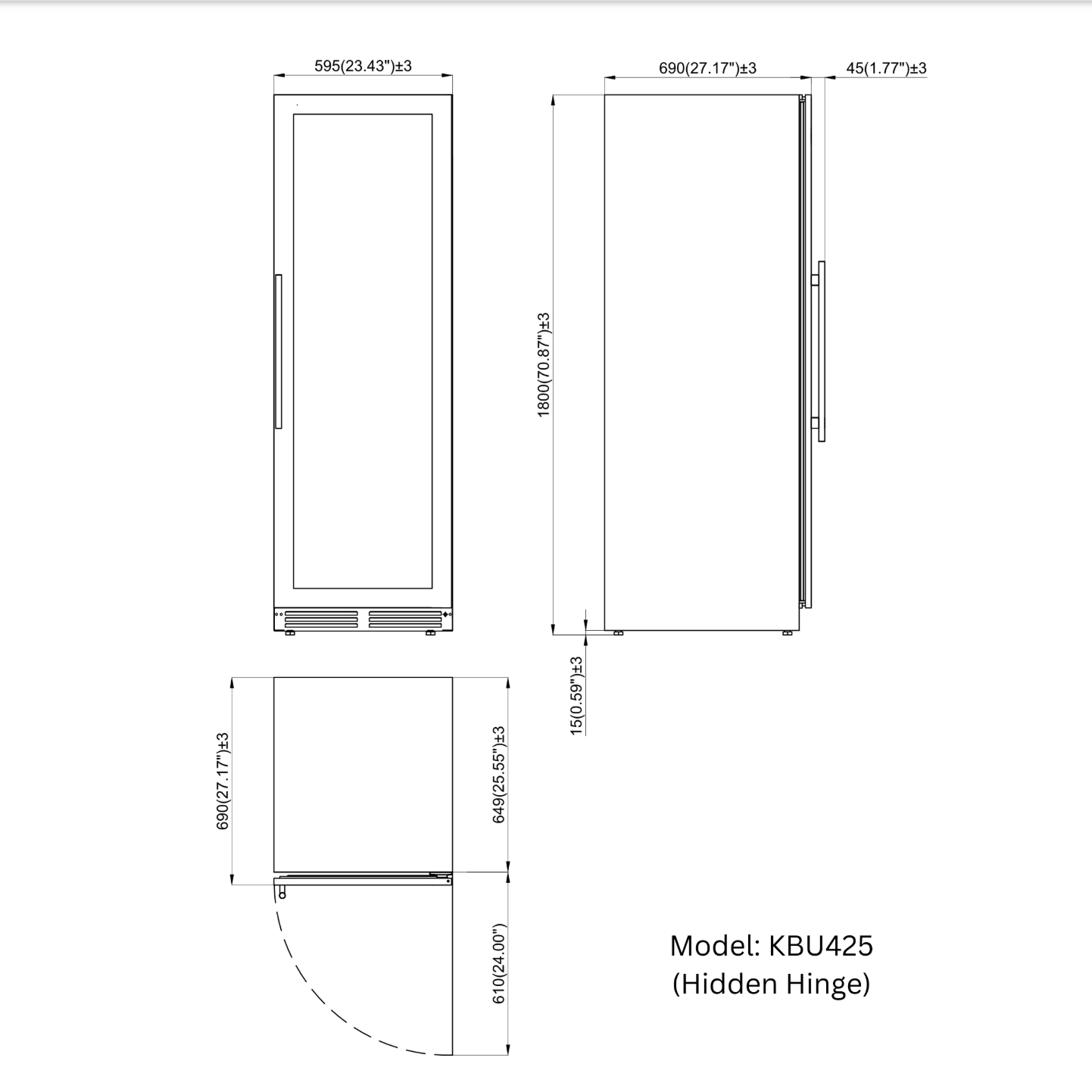

Technical Dimensions

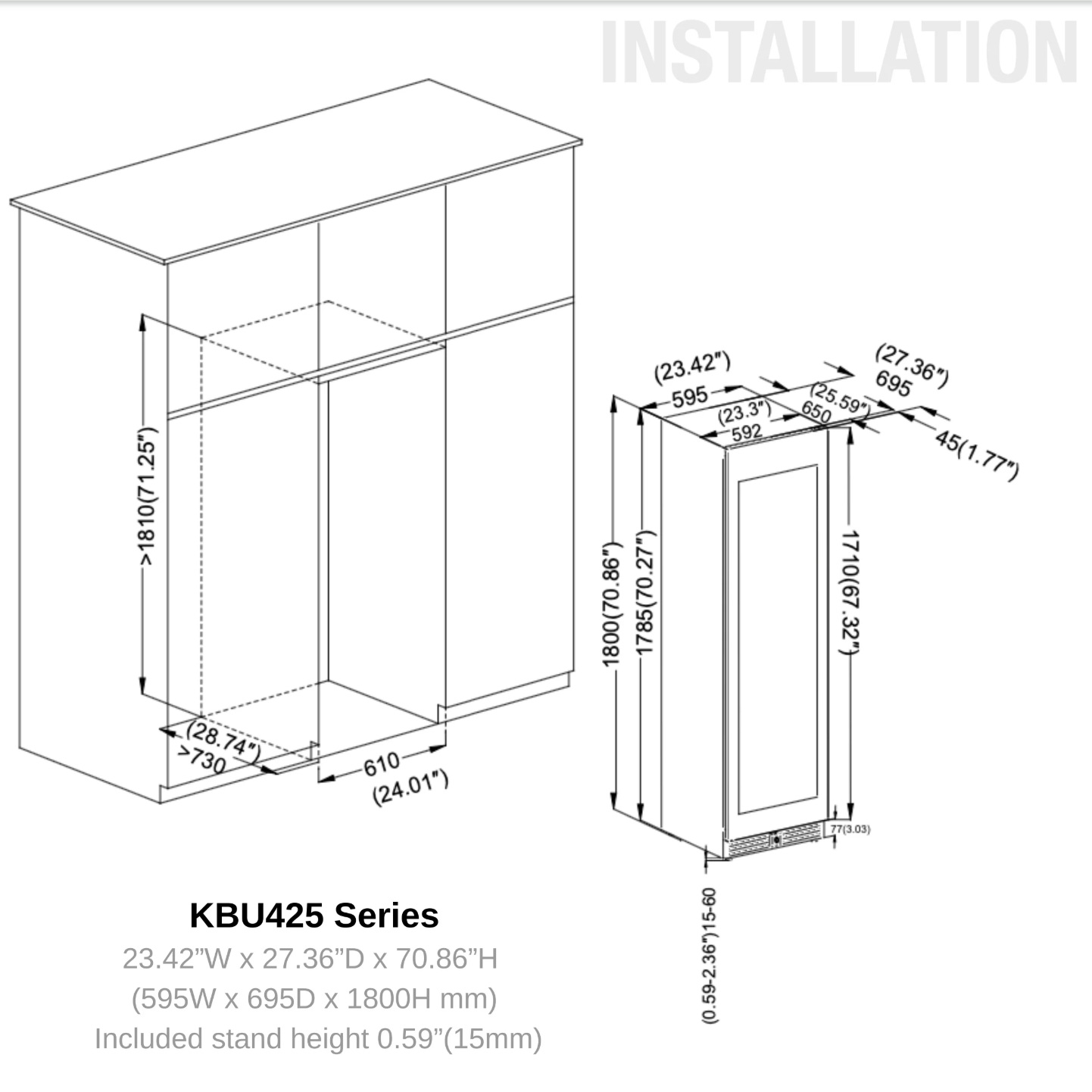

Installation Diagrams
User Manual
This manual covers a combo set of two units: a Beverage Cooler and a Dual Zone Wine Cooler.
