DESCRIPTION

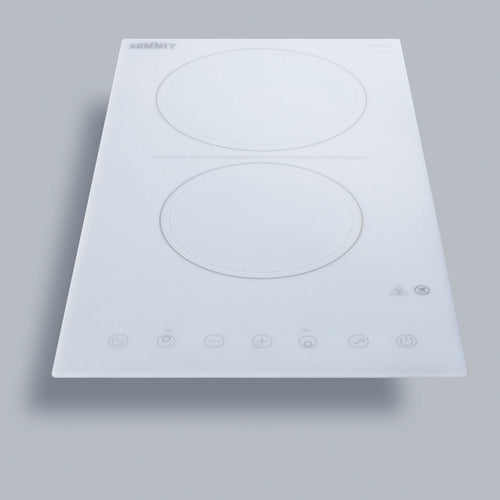

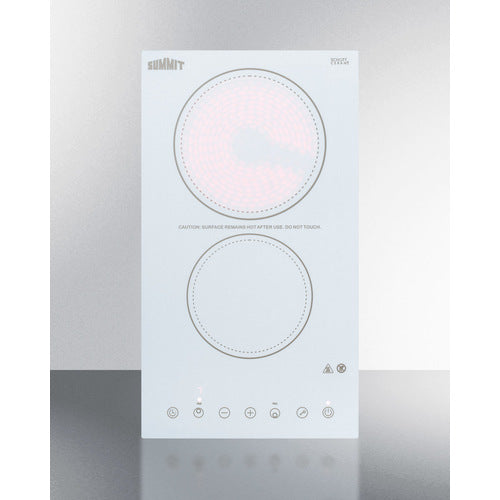

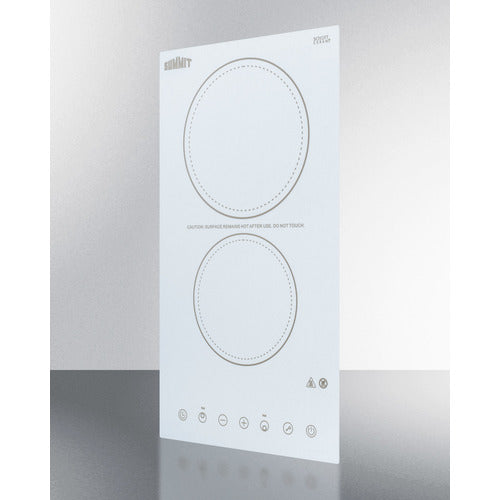

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR2B23T4W is an ENERGY STAR certified 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. For true cooking versatility, the CR2B23T4W features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements. With its attractive design, ideal size, and intuitive touch controls, the CR2B23T4W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
FEATURES
230V cooktop with digital controls and a smooth glass surface
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Made in Germany, the white Schott glass offers easier cleanup and lasting durability
Rear 7" burner offers 1800W for faster heating of larger cooking vessels
Front burner is 5.5" in diameter to meet most cooking needs

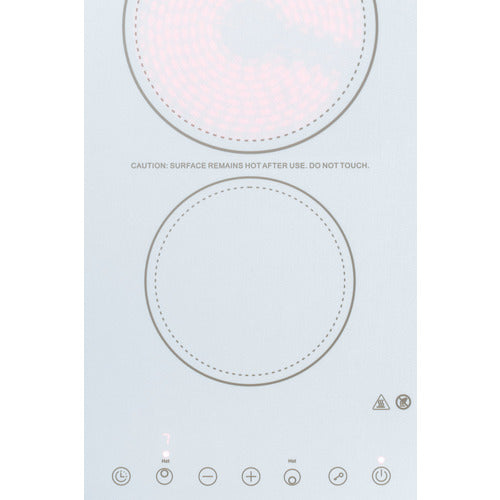

Easy operation with a digital control panel and digital display
Select and adjust your heating levels at the touch of a button
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
Fits counter cutout sizes that are 10.75" wide by 19.9" deep
Upfront controls meet ADA guidelines for easier accessibility
Allows you to program either burner to heat at a specified level for up to 99 minutes
Safety feature lets you lock the cooktop to prevent unsupervised heating
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
Requires professional hardwired installation to 230V power supply
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 2.0" (5 cm) |
| Height of Cabinet | 2.0" (5 cm) |
| Nominal Width | 12.0" (30 cm) |
| Width | 11.38" (29 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.5" (52 cm) |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 15.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 10.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101053301 |
|
Electric Cooktop
|
|
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 2 |
| Controls | Digital |
| Cooking Timer | Yes |
| Countertop Cutout Height | 5.9" (15 cm) |
| Countertop Cutout Width | 10.75" (27 cm) |
| Countertop Cutout Depth | 19.9" (51 cm) |
| Power Source | 230V |
| Element #1 Size | 7.0" (18 cm) |
| Element #1 Wattage | 1800.0 |
| Element #2 Size | 5.5" (14 cm) |
| Element #2 Wattage | 1200.0 |
| Power Cord Included | No |
