DESCRIPTION

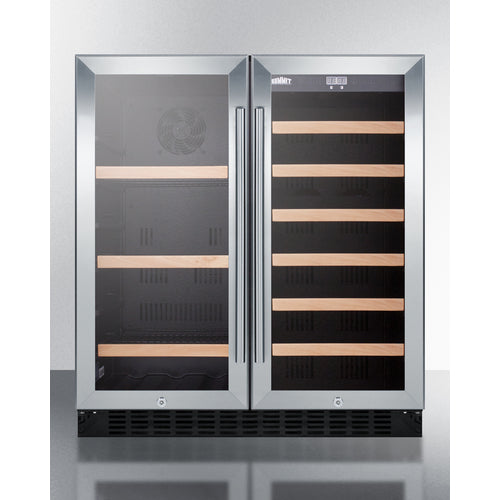

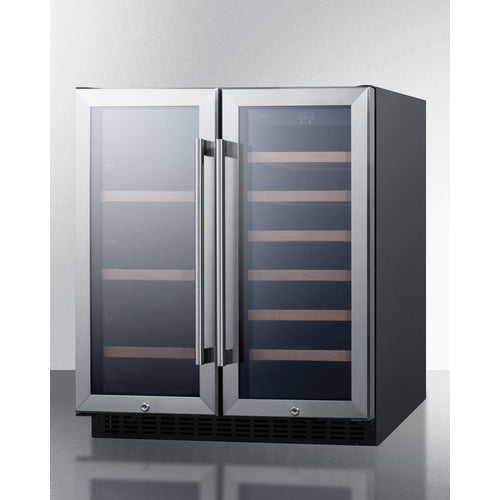

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWBV3071 is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles. Front locks offer keyed security for both compartments. The sealed back design ensures easier cleanability. Two separate zones feature independent digital thermostats, allowing you to store craft beer or white wine in the left side while preserving your red wine in the right. The left beverage compartment includes three slide-out black wire shelves with wooden trim to match the six wooden shelves included in the right. Both sections feature a slotted floor to hold additional bottles. The digital control panel features an LED temperature readout in Celsius or Fahrenheit. Recessed LED lighting in a white hue offers an attractive and efficient presentation. With its attractive style and user-friendly features, the SWBV3071 is a great addition to any home looking to bring versatile beverage storage under the counter.
FEATURES
Meets UL-471 commercial standards
Make the best use of space by installing this unit under the counter
Two independent zones allow you to store both red and white wine or craft beer at the proper conditions
Interior digital thermostat lets you separately manage the temperature of each section, with a readout viewable in Celsius or Fahrenheit

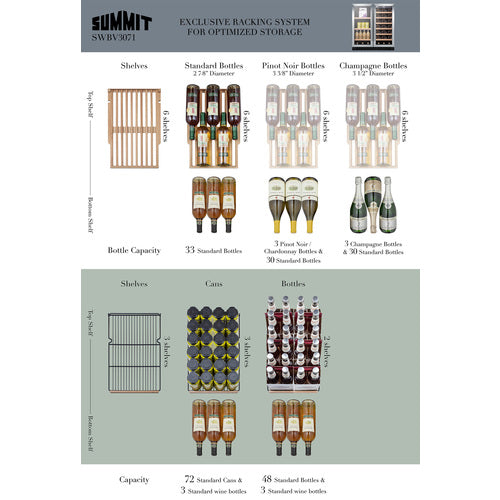

Store up to 33 standard Bordeaux style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section. To accommodate wider Burgundy style wine or champagne bottles, you can remove every other wine shelf
Gentle and energy efficient LED lighting in an attractive white hue offers an elegant view of stored items
Red wine section includes six removable wooden shelves for proper bottle storage
Craft beer section is equipped with three adjustable black wire shelves with an attractive wooden trim to complement the wine section
Floor is specially designed with slots to allow you to store larger champagne or Burgundy style bottles safely on their sides
Sleek stainless steel handles add an elegant touch to any setting
French door swing offers a modern look, with stainless steel door trim for an added accent
Keyed locks on both zones offer separate security for interior contents
Reduced user maintenance with automatic defrost
Internal fans ensure both interiors have a consistent temperature from top to bottom
Setting allows you to disable the digital displays, lights, and alarms for religious observance.
Audible alarm sounds if the interior temperature rises above the recommended range
Alarm will sound if either door is left open for over 60 seconds
In the event of power loss, the unit will retain its last temperature settings upon power recovery
Space-saving design with no exposed coils in the rear offers easy cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.0" (86 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 37.0" (94 cm) |
| Capacity | 5.8 cu.ft. (164 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 132.0 lbs. (60 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101050423 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wire and Wood |
| Shelf Qty | 9 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.38" (67 cm) |
| Interior Width 1 | 12.0" (30 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 3.0" (8 cm) |
| Compressor Step Width | 26.75" (68 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 2 |
| Temperature Range | Left side: 36Âș to 43ÂșF; Right side: 41Âș to 72ÂșF |
| Interior Height 2 | 24.75" (63 cm) |
| Interior Width 2 | 12.0" (30 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
| Sabbath Mode | Yes |
