DESCRIPTION

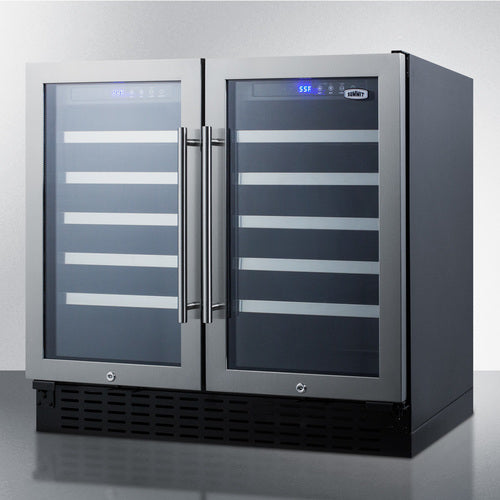

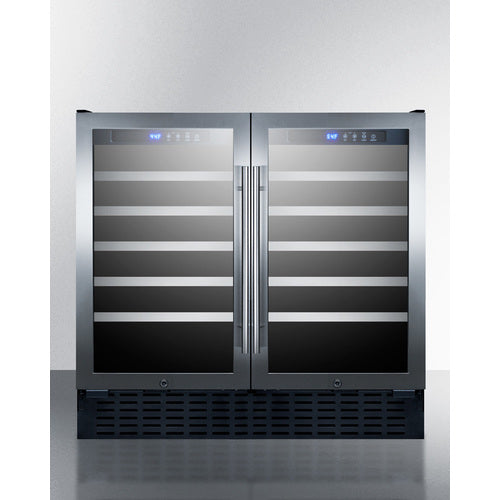

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWC3668 is a 36" wide wine cellar designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look. Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style. With a professional look and innovative design, SUMMIT SWC3668 is a unique addition to any home. For this unit sized for lower ADA compliant counters, see the SWC3668ADA.
FEATURES
Make the best use of space by installing this unit under the counter and flush with other cabinetry
ETL-S listed to ANSI-NSF Standard 7 and meets UL-471
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions

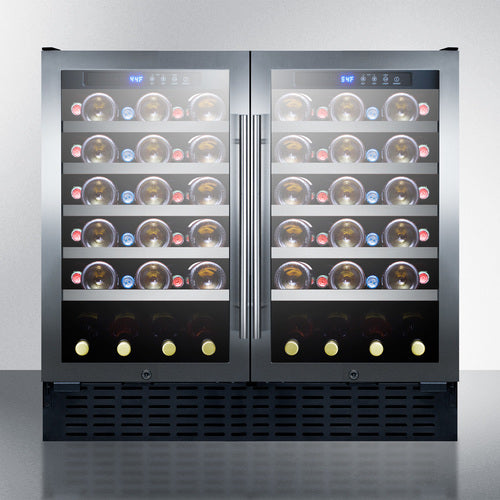

Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
Gentle and energy efficient LED lighting offers an elegant view of your collection

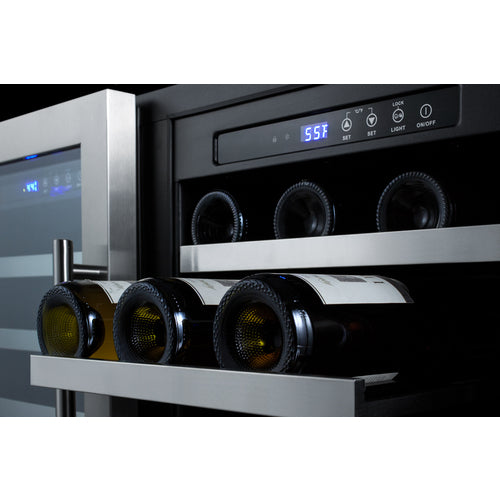

Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Stainless steel trimmed wooden shelves with a jet black finish for a modern look
Sleek stainless steel handles add an elegant touch to any setting
French door swing for a more dramatic presentation
Door trim is completely seamless for a more luxurious look
Keyed locks on both zones offer separate security for interior contents
Reduced user maintenance with automatic defrost
Internal fans ensure both interiors have a consistent temperature from top to bottom
Allows the unit to be used freestanding
Space-saving design that ensures easier cleanup
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.38" (90 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90Ā° | 39.75" (101 cm) |
| Bottles | 68 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 151.0 lbs. (68 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101054933 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 10 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 23.0" (58 cm) |
| Interior Width 1 | 14.0" (36 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 14.0" (36 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 40 to 72ĀŗF |
| Interior Height 2 | 23.0" (58 cm) |
| Interior Width 2 | 14.0" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 36.0 dB |
