DESCRIPTION

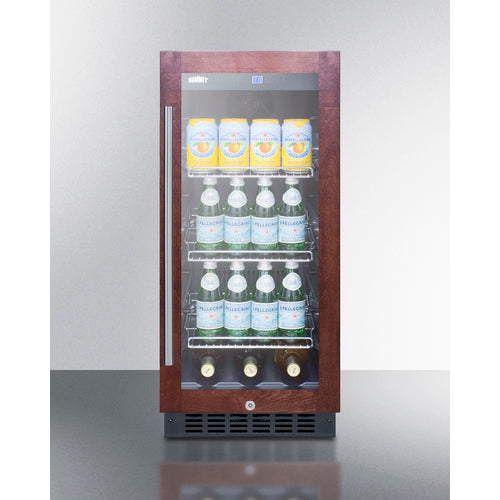

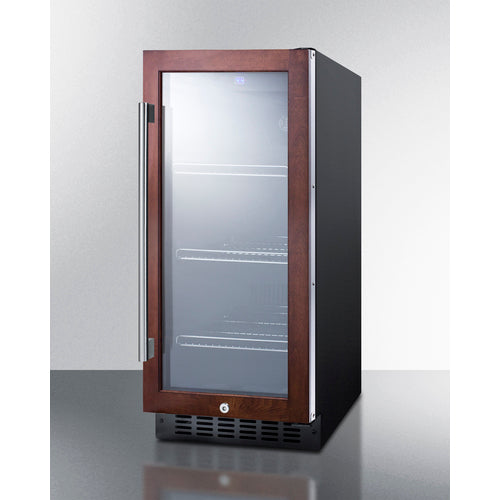

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters. The SCR1536BGPNR is a slim-fitting 14 3/4" wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential use. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows you to use the unit freestanding. This model features a double pane tempered glass door with a panel-ready trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness). This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.A factory-installed lock offers convenient security as needed. Users provide their own handle. Inside, the SCR1536BGPNR includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance. With its perfect size and user-friendly features, the SCR1536BGPNR brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535BPNR wine cellar. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
FEATURES
ETL-S listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing your appliance under the counter
Allows the unit to be used freestanding

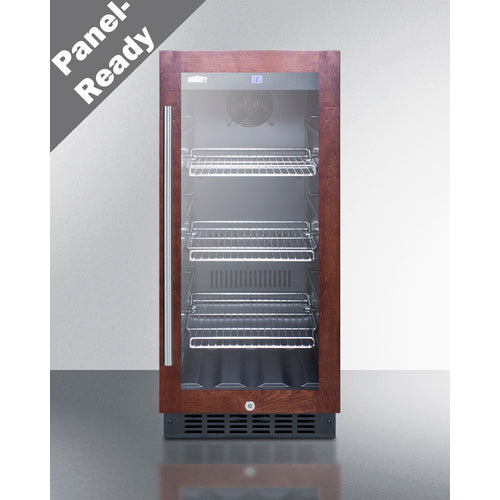

Door frame can be customized with a custom overlay panel (panel frame dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness)
Provides a full display of stored contents with a heat-safe double tempered design
Keyed security on the door
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
Slide-out shelves offer attractive and convenient storage for beverages
Door ships with a right hand door swing. For a left hand version, add option "LHD"
Optional setting lets you disable the lighting and alarm for up to 48 hours
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space saving design
For a complete set, pair this unit with the SWC1535BPNR wine cellar for true beverage storage convenience
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.88" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with door at 90Ā° | 36.25" (92 cm) |
| Capacity | 2.45 cu.ft. (69 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 245.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 77.0 lbs. (35 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101082868 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 10.25" (26 cm) |
| Interior Depth | 16.5" (42 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.25" (26 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
AVAILABLE UPGRADES
| Exterior | |||||
|---|---|---|---|---|---|
|
|||||
| Door | |||||
|
