DESCRIPTION
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW2412PNR is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW2412PNR features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW2412PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411PNR beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.
FEATURES
Single zone wine cooler for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
32" height allows easy installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter

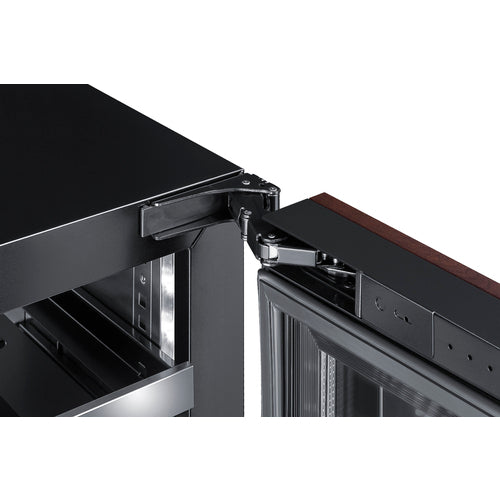

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior (2 keys included)
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

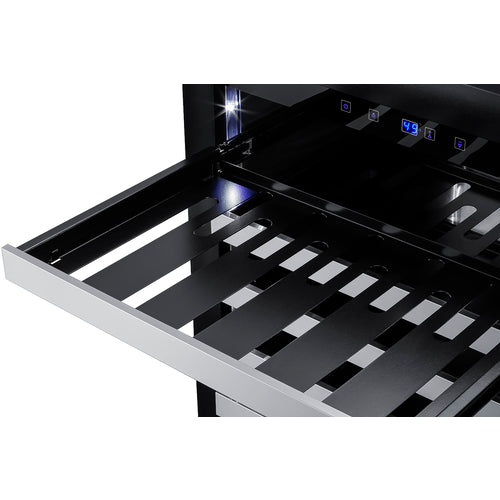

Shelving is set on ball-bearing glides for a smoother extension, making it easy to load
33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
Smoother opening and a better fit with an integrated European hinge
User-reversible door swing for added flexibility
Allows the unit to be used freestanding
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|

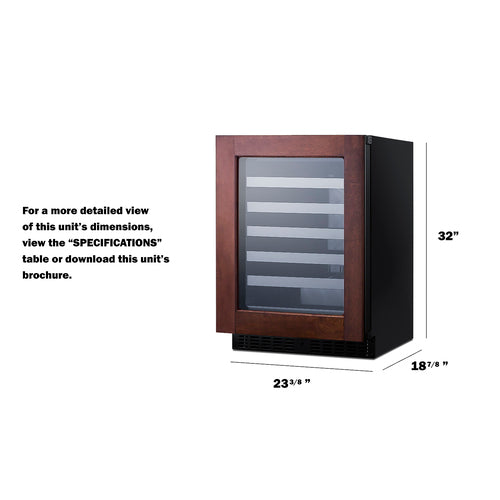

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101104195 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 24.25" (62 cm) |
| Interior Width 1 | 19.5" (50 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 32.6 dB |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
|||||
| Exterior | |||||
|
DOWNLOADS
