Description

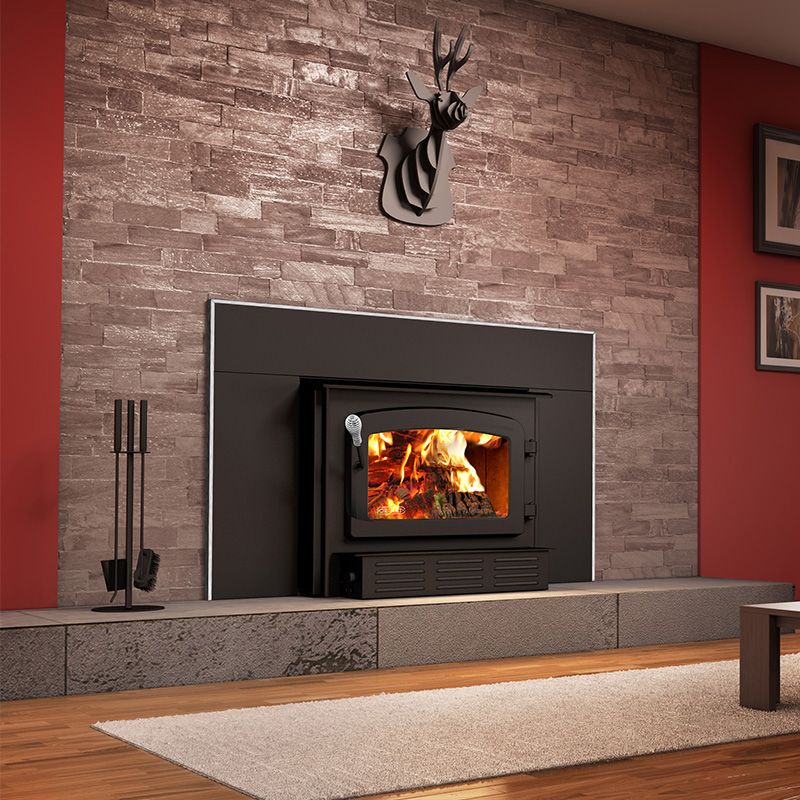

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!
Included: blower, ceramic glass, ash lip, air damper
- - Burn time up to 8 hours
- - Up to 20'' logs
- - 2.4 ft³ firebox
- - Robust 5/16'' steel
- - EPA certified
- - Proudly made in Canada
- - Limited lifetime warranty
- - Weight : 392 lbs
Options: faceplate (regular or large) with brushed nickel trim or cuttable faceplate, firescreen, fresh air intake
SPECIFICATIONS
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area (9) | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time (9) | 8 h |
| Maximum heat output-dry cordwood (4) | 75,000 BTU/h (22.0 kW) |
| Minimum overall heat output rate (4) (5) | 14,800 BTU/h (4.34 kW) |
| Maximum overall heat output rate (4) (5) | 28,600 BTU/h (8.38 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 69 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 74 % |
| Optimum efficiency (1) (2) | 77 % |
| Optimum heat transfer efficiency (8) | 75 % |
| Average particulate emission rate (3) | 1.54 g/h |
| Average CO (10) | 89.4 g/h |
| Size | Large |
| Premium quality blower included (CFM) | 144 |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 6 7/8" |
| Distance-center of the flue outlet to side unit | 13 1/2" |
| Chimney diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height | 12' |
| Overall dimension (Width) | 28 3/8" |
| Overall dimension (Height) | 23 1/8" |
| Overall dimension (Depth) | 26 3/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 11 7/8" |
| Firebox size (Depth) | 16 1/2" |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| Minimum fireplace opening (Height) | 23 3/8" |
| Minimum fireplace opening (Width) | 28 7/8" |
| Minimum fireplace opening (Depth) | 15 3/4" |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (safety) | ULC S628 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Warranty | Limited lifetime |
| weight | 392 lb (178 kg) |
Resources & Downloads
Installation and Operation Manual
