Description

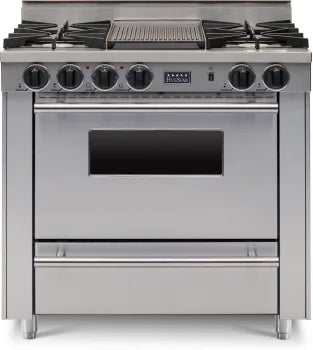

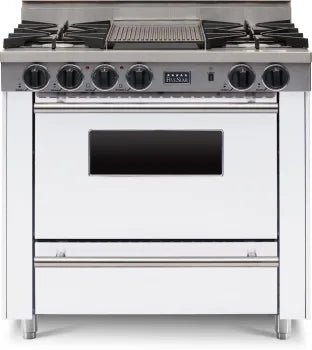

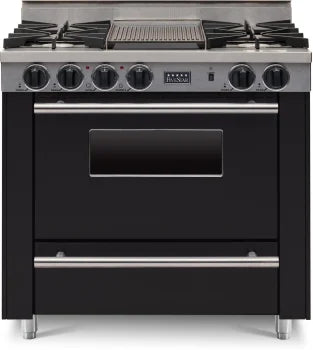

36 Inch Freestanding Gas Range with 4 Open Burners
The FiveStar 36" range has the same power, capacity and versatility as its larger counterparts. While six burners are available, the standard four-burner option takes cooktop utility to the max with an interchangeable Lodge cast iron griddle/grill. Optional TurboFlow convection also lets you cook for twenty as easily as for two.
Features
-
4 Open Burners - Four 12,000 BTU burners can handle many menu items at once and meet most cooking needs.
-
3.69 Cu. Ft. Oven Capacity - The moist heat of a gas oven is ideal for roasting or braising chicken.
-
Broiler Drawer - Gives you an extra cooking area for toasting and browning food.
-
Continuous Grates - Designed so pots and skillets slide easily from one burner to the next.
-
Lodge Reversible Griddle/Grill - FiveStar's interchangeable griddle/grill from Lodge lets you cook flavorful grilled meats, fish, breakfast basics and more.
-
Vari-Flame Burners - Heat goes from a high of 12,000 BTU all the way down to a slow 400 BTU simmer.
-
Quick, Easy Cleanup - A lift-off oven door and removable burner grates and oven racks make post-meal clean-up quick and easy.
Additional Features
- 24" Deep Counterdepth Design
- Ventilation Recommendation: 1,200 CFM
- CSA Certified
Product Options
- Brass trim is available by adding an "S" suffix to the model number (TTN312-7BSW).
- Factory-set LP gas is available by changing the 2nd letter of the model number to "P".
- Factory-set high elevation is available; specify if installing over 4,000 feet.
- California residents: see Prop 65 warnings.
Specifications
| Additional Specs |
|---|
| Oven Capacity |
3.69 Cu. Ft. |
| Gas Service Line |
1/2" |
| Continuous Grates |
Yes |
| Trim |
Stainless Steel Brass |
| Range Leg Adjustment |
2" maximum, from 35 7/8" to 37 7/8" |
| Standard Backguard |
Not Included |
| Oven Sizes |
24" wide x 19" deep x 14" high |
| Electrical Requirements |
|---|
| Volts |
120v |
| Amps |
5a |
| Dimensions & Weights |
|---|
| Width |
36" |
| Depth |
24" |
| Height |
36" |
| Net Weight |
250 lbs |
| Shipping Weight |
290 lbs |
Product Information
| Product Information |
|---|
| Brand |
FiveStar |
| Model |
TPN312-7BW, WPN312-7W, TPN312-7W, TPN312-7BSW, WPN312-7SW, TPN312-7SW |
| MPN |
TPN312-7BW, WPN312-7W, TPN312-7W, TPN312-7BSW, WPN312-7SW, TPN312-7SW |
| Appearance |
|---|
| Color |
Stainless Steel, White, Black |
| Fuel Type |
Gas |
| Fuel Subtype |
Liquid Propane |
| Style |
Freestanding |
| Fingerprint Resistant |
No |
| Stainless Steel Handle |
Yes |
| Cooktop |
Open Burner |
| Cooktop Control Type |
Knobs |
| Oven Control Type |
Knobs |
| Viewing Window |
Yes |
| Double Oven |
No |
| Drawer |
Broiler |
| Clock |
No |
| Dimensions |
|---|
| Width |
36 Inch |
| Depth |
24 Inch |
| Height |
36 Inch |
| Shabbos Compliance |
|---|
| Sabbath Mode |
No |
| Smart |
|---|
| WiFi |
No |
| Smart Accessory Required |
No |
| Capacity |
|---|
| Number of Burners |
4 |
| Primary Oven Capacity |
3.69 Cu. Ft. |
| Burner |
|---|
| Simmer Burner |
Yes |
| Power Burner |
No |
| Burner 1 Output |
12,000 BTU (Front Left) |
| Burner 2 Output |
12,000 BTU (Back Left) |
| Burner 3 Output |
12,000 BTU (Back Right) |
| Burner 4 Output |
12,000 BTU (Front Right) |
| Burner 5 Output |
10,500 BTU (Griddle/Grill) |
| Gas Cooktop Features |
|---|
| Continuous Grates |
Yes |
| Dishwasher Safe Grates |
No |
| Cooktop Accessory |
Reversible Grill/Griddle |
| Grill |
Yes |
| Griddle |
Yes |
| French Top |
No |
| Oven Features |
|---|
| Digital Temperature Display |
No |
| Timer |
No |
| Delay Bake |
No |
| Fast Preheat |
Yes |
| Convection |
No |
| Proof Mode |
No |
| Self-Cleaning |
No |
| Steam Clean |
No |
| Racks |
2 |
| Glide Rack(s) |
No |
| Temperature Probe |
No |
| Broiler Pan Included |
Yes |
| Interior Oven Light |
Yes |
| Removable Door |
Yes |
| Air Fry |
No |
| Sous Vide |
No |
| Technical Details |
|---|
| ADA Compliant |
No |
| Oven BTUs |
18,000 |
| LP Conversion |
No |
| Amps |
5 |
| Voltage |
120 Volts |
