Description

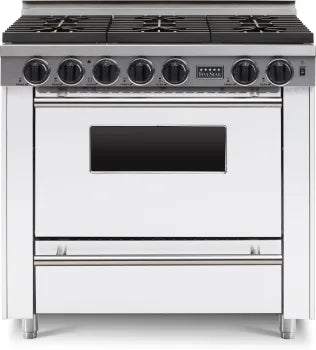

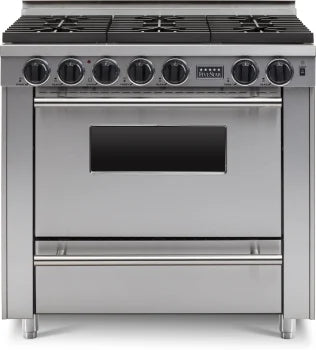

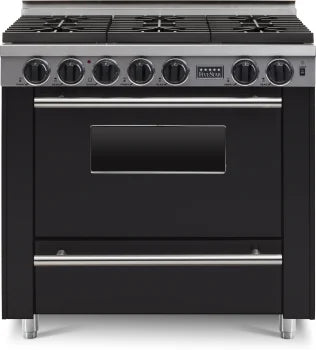

36 Inch Freestanding Gas Range with 6 Sealed Burners
A full-size gas oven and six sealed burners with one-piece continuous grates give the FiveStar 36" range the same power, capacity and versatility as its larger counterparts. With 350 to 21,000 BTU of burner power, the industry's widest performance range, you can bring a giant pot of pasta water to a boil in minutes or make the most delicate sauces with ease.
Features
-
6 Sealed Burners - The cooktop has three Ultra High-Low and three Medium-Low sealed burners.
-
3.69 cu ft Oven - The moist heat of a gas oven is ideal for roasting or braising chicken.
-
Broiler Drawer - A broiler drawer below the oven gives you an extra cooking area for toasting and browning food.
-
Continuous Grates - FiveStar continuous grates let pots and skillets slide easily from one burner to the next.
-
Viewing Window - Lets you keep track of your cooking through the oven door.
Product Options
- Brass trim is available by adding an "S" suffix to the model number (TTN336-7BSW).
- Factory-set LP gas is available by changing the 2nd letter of the model number to "P".
- Factory-set high elevation is available; specify if installing over 4,000 feet.
- California residents: see Prop 65 warnings.
Specifications
| Sealed Burner Ratings |
|---|
| Ultra High-Low |
equivalent of 350 BTUs up to 21,000 BTUs Nat. Gas, 18,900 BTUs LP |
| Medium-Low |
equivalent of 300 BTUs up to 9,500 BTUs Nat. Gas, 9,100 BTUs LP |
| Specifications |
|---|
| Counter Depth Design |
Yes |
| Total Surface Rating |
up to 91,500 BTUs Nat. Gas, 84,000 BTUs LP |
| Ventilation Recommendation |
1,200 CFM |
| Oven Capacity |
24" wide 3.69 cu. ft Gas Oven |
| Drawer Type |
Broiler |
| Gas Oven/Broiler Burner Rating |
18,000 BTUs (Nat. Gas and LP) |
| Shipping Weight |
approx. 300 lbs |
| Electrical Requirements |
|---|
| Voltage |
120V |
| Amperage |
5 amps |
Product Information
| Product Information |
|---|
| Brand |
FiveStar |
| Model |
TTN336-7BW, WTN336-7W, TTN336-7W, TTN336-7BSW, WTN336-7SW, TTN336-7SW |
| MPN |
TTN336-7BW, WTN336-7W, TTN336-7W, TTN336-7BSW, WTN336-7SW, TTN336-7SW |
| Appearance |
|---|
| Color |
Stainless Steel, White, Black |
| Fuel Type |
Gas |
| Fuel Subtype |
Natural Gas |
| Style |
Freestanding |
| Stainless Steel Handle |
Yes |
| Cooktop |
Sealed Burner |
| Cooktop Control Type |
Knobs |
| Oven Control Type |
Knobs |
| Viewing Window |
Yes |
| Double Oven |
No |
| Drawer |
Broiler |
| Clock |
No |
| Dimensions |
|---|
| Width |
36 Inch |
| Depth |
24 Inch |
| Height |
36 Inch |
| Interior Width |
24 Inch |
| Interior Depth |
19 Inch |
| Interior Height |
14 Inch |
| Shabbos Compliance |
|---|
| Sabbath Mode |
No |
| Smart |
|---|
| WiFi |
No |
| Remote Control |
No |
| Remote Monitoring |
No |
| Smart Accessory Required |
No |
| Capacity |
|---|
| Number of Burners |
6 |
| Primary Oven Capacity |
3.69 Cu. Ft. |
| Burner |
|---|
| Burner 1 Output |
21,000 |
| Burner 2 Output |
21,000 |
| Burner 3 Output |
21,000 |
| Burner 4 Output |
9,500 |
| Burner 5 Output |
9,500 |
| Burner 6 Output |
9,500 |
| Gas Cooktop Features |
|---|
| Continuous Grates |
Yes |
| Dishwasher Safe Grates |
Yes |
| Cooktop Accessory |
No Accessory |
| Oven Features |
|---|
| Digital Temperature Display |
No |
| Timer |
No |
| Delay Bake |
No |
| Convection |
No |
| Proof Mode |
No |
| Self-Cleaning |
No |
| Racks |
2 |
| Temperature Probe |
No |
| Broiler Element Location |
Bottom |
| Broiler Pan Included |
Yes |
| Interior Oven Light |
Yes |
| Removable Door |
Yes |
| Technical Details |
|---|
| Oven BTUs |
18,000 |
| LP Conversion |
No |
| Amps |
5 |
| Voltage |
120 Volts |
