Description

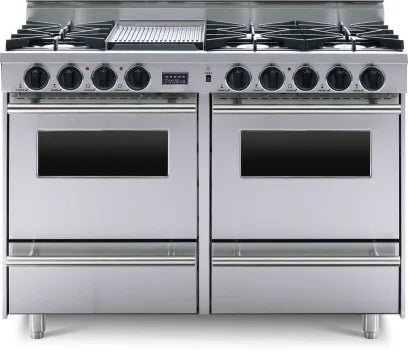

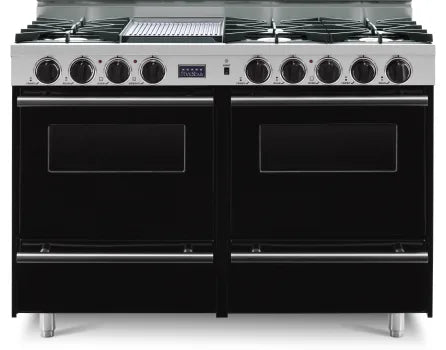

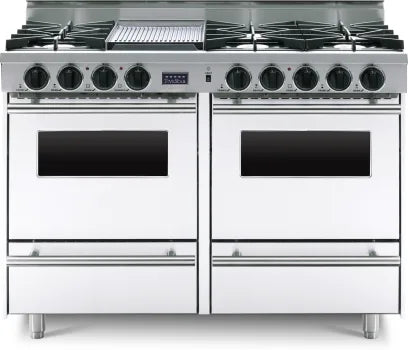

48 Inch Freestanding Gas Range with 6 Open Burners
The FiveStar 48" range features an interchangeable Lodge cast iron griddle/grill and six open burners with individual continuous grates, giving you the tools to saute, simmer and sear all at once. Three of the burners come with Vari-Flame, taking heat from a high of 14,000 BTU all the way down to a slow 400 BTU simmer on open burner models.
Features
-
6 Open Burners - Each burner delivers up to 14,000 BTUs on natural gas or 12,000 BTUs on LP.
-
Dual Gas Ovens - Each oven has a capacity of 2.92 cu. ft.
-
5.84 cu ft Total Oven Capacity - The moist heat of a gas oven is ideal for roasting or braising chicken.
-
Broiler Drawers - Two broiler drawers below the ovens give you extra cooking areas for toasting and browning food.
-
Individual Continuous Grates - FiveStar continuous grates let pots and skillets slide easily from one burner to the next.
-
Lodge Reversible Griddle/Grill - FiveStar's reversible griddle/grill from Lodge lets you cook flavorful grilled meats, fish, breakfast basics and more.
-
Vari-Flame Burners - VariFlame burners take heat from a high of 14,000 BTU all the way down to a slow 400 BTU simmer.
-
Viewing Window - Lets you keep track of your cooking through the oven door.
Product Options
- Brass trim is available by adding an "S" suffix to the model number (TTN511-7BSW).
- Factory-set LP gas is available by changing the 2nd letter of the model number to "P".
- Factory-set high elevation is available; specify if installing over 4,000 feet.
- California residents: see Prop 65 warnings.
Specifications
| Sealed Burner Ratings |
|---|
| Open Burner |
14,000 BTUs |
| Vari-Flame Center Simmer |
from 400 to 1,050 BTUs |
| Specifications |
|---|
| Counter Depth Design |
Yes |
| Griddle Grill Rating |
10,500 BTUs (Nat. Gas and LP) |
| Total Surface Rating |
94,500 BTUs Nat. Gas, 82,500 BTUs LP |
| Ventilation Recommendation |
1,200 CFM |
| Oven Capacity |
19" wide 2.92 cu. ft. Gas Ovens |
| Drawer Type |
Broiler |
| Gas Oven/Broiler Burner Rating |
18,000 BTUs (Nat. Gas and LP) |
| Shipping Weight |
approx. 400 lbs |
| Electrical Requirements |
|---|
| Voltage |
120V |
| Amperage |
5 amps |
Product Information
| Product Information |
|---|
| Brand |
FiveStar |
| Model |
TTN511-7BW, WTN511-7W, TTN511-7W, TTN511-7BSW, WTN511-7SW, TTN511-7SW |
| MPN |
TTN511-7BW, WTN511-7W, TTN511-7W, TTN511-7BSW, WTN511-7SW, TTN511-7SW |
| Appearance |
|---|
| Color |
Stainless Steel, White, Black |
| Fuel Type |
Gas |
| Fuel Subtype |
Natural Gas |
| Style |
Freestanding |
| Stainless Steel Handle |
Yes |
| Cooktop |
Open Burner |
| Cooktop Control Type |
Knobs |
| Oven Control Type |
Knobs |
| Viewing Window |
Yes |
| Double Oven |
Yes |
| Drawer |
Broiler |
| Clock |
Yes |
| Dimensions |
|---|
| Width |
48 Inch |
| Depth |
24 Inch |
| Height |
36 Inch |
| Shabbos Compliance |
|---|
| Sabbath Mode |
No |
| Smart |
|---|
| WiFi |
No |
| Remote Control |
No |
| Remote Monitoring |
No |
| Smart Accessory Required |
No |
| Capacity |
|---|
| Number of Burners |
6 |
| Primary Oven Capacity |
2.92 Cu. Ft. |
| Secondary Oven Capacity |
2.92 Cu. Ft. |
| Burner |
|---|
| Burner 1 Output |
14,000 |
| Burner 2 Output |
14,000 |
| Burner 3 Output |
14,000 |
| Burner 4 Output |
14,000 with Vari-Flame |
| Burner 5 Output |
14,000 with Vari-Flame |
| Burner 6 Output |
14,000 with Vari-Flame |
| Gas Cooktop Features |
|---|
| Continuous Grates |
Yes |
| Dishwasher Safe Grates |
Yes |
| Cooktop Accessory |
Reversible Grill/Griddle |
| Oven Features |
|---|
| Digital Temperature Display |
No |
| Timer |
No |
| Delay Bake |
No |
| Convection |
No |
| Proof Mode |
No |
| Self-Cleaning |
No |
| Racks |
2 |
| Temperature Probe |
No |
| Broiler Element Location |
Bottom |
| Broiler Pan Included |
Yes |
| Interior Oven Light |
Yes |
| Removable Door |
Yes |
| Technical Details |
|---|
| Oven BTUs |
18,000 |
| LP Conversion |
No |
| Amps |
5 |
| Voltage |
120 Volts |
