DESCRIPTION
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHG1533PNR is a 15" wide glass door beverage refrigerator, sized at just 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHG1533PNR features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. The user-reversible door swing allows easy adjustment as needed. The unit's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36Ā°F and 43Ā°F. Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. The SDHG1533PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. Create a matching set by pairing this with our SDHW1532PNR wine cellar. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a 24" wide unit, see model SDHG2443PNR.
FEATURES
Undercounter glass door beverage refrigerator for residential or commercial use
Unique 18" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments

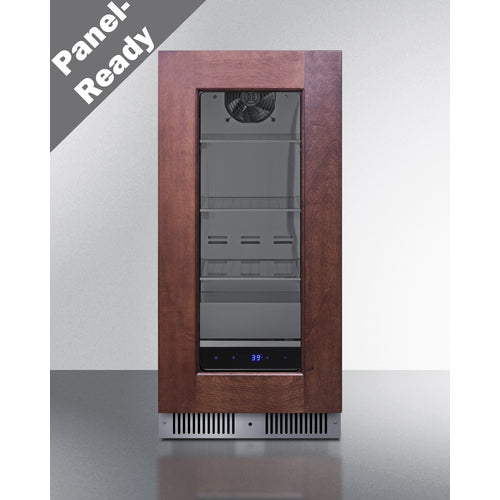

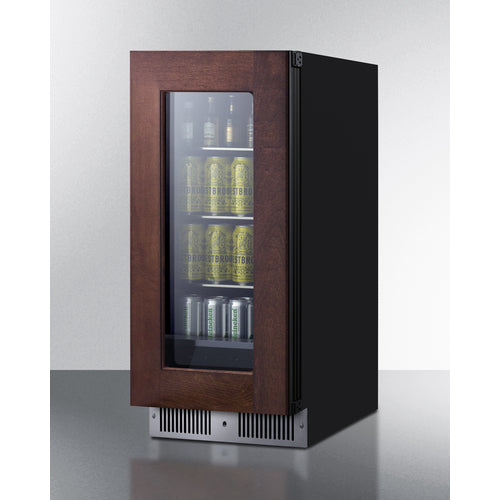

Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

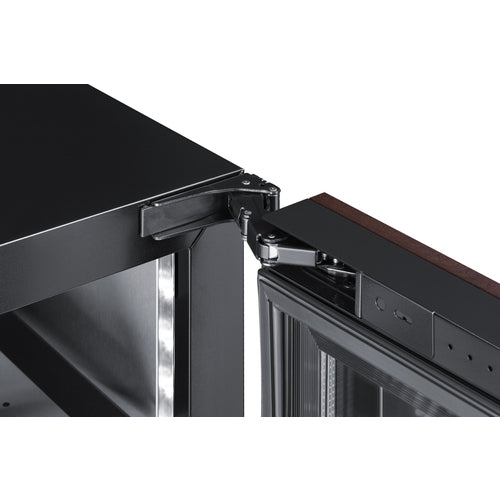

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame

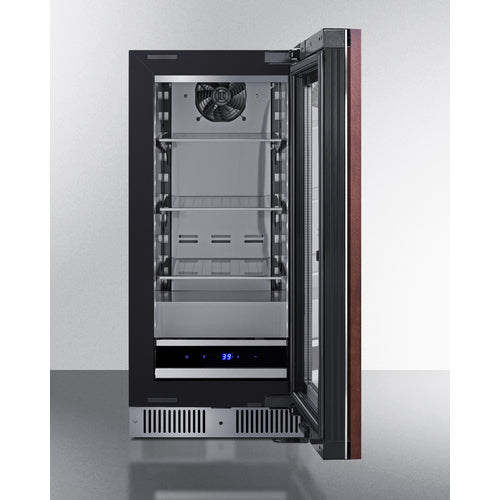

Elegant design offers a clear but protected view of your interior
Smoother opening and a better fit with an integrated European hinge
Keyed lock for a secure interior (2 keys included)
Walls and floor are constructed from stainless steel for added strength and easy cleanup
No-frost operation for minimum user maintenance
The unit's temperature range of 36Ā°F to 43Ā°F is ideal for chilling beverages
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

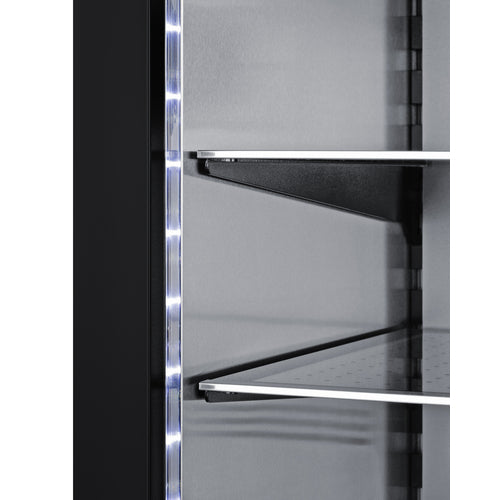

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Thermostatās unique internal position allows for precise temperature readouts and easier temperature management
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the interior temperature rises out of set range
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance
Unit will retain its last settings when power is restored in the event of power loss

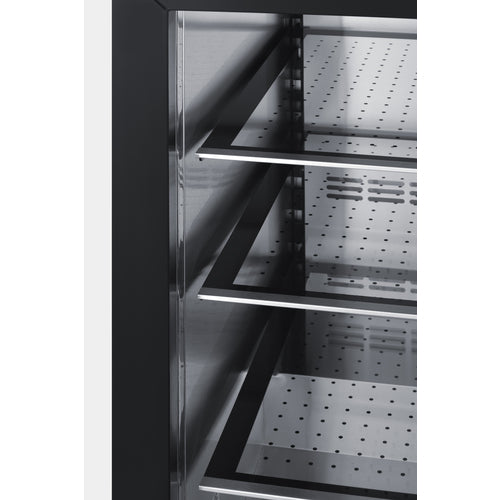

Spill-proof shelving for easy cleanup and flexible storage
Allows the unit to be used freestanding
Space-saving design with no exposed coils that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
User-reversible door swing for added flexibility to best accommodate your setting
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|

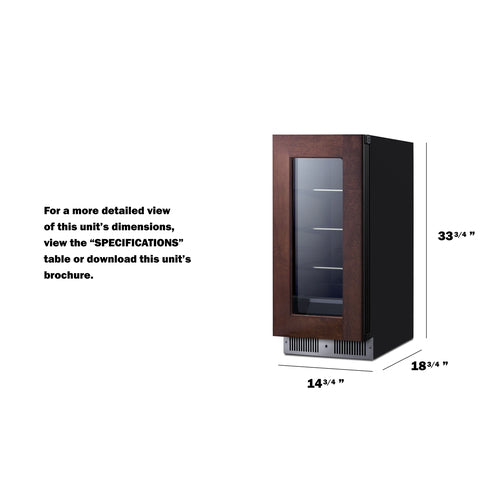

Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Width with Door Open | 15.5" (39 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 18.0" (46 cm) |
| Depth with door at 90Ā° | 32.63" (83 cm) |
| Capacity | 1.9 cu.ft. (54 L) |
| Bottles | 18 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 86.0 lbs. (39 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145686 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36Ā°F to 43Ā°F |
| Sound Level | 33.5 dB |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 10.63" (27 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.63" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
