FEATURES
32" height to fit under lower ADA compliant counters
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Make the best use of space by installing your appliance under the counter and flush with other cabinets

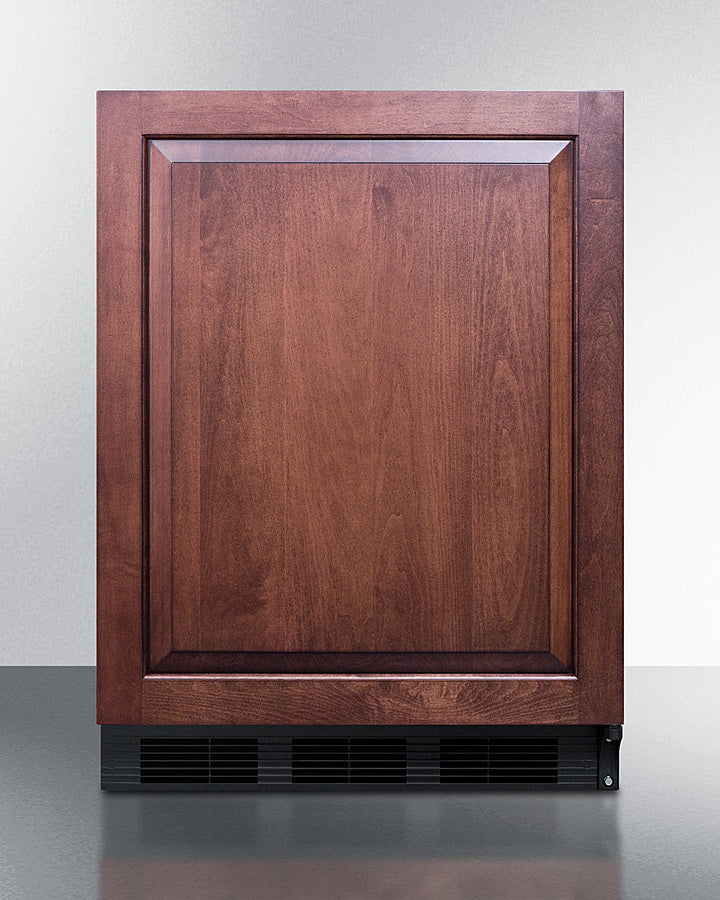

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Reduced maintenance with auto defrost system

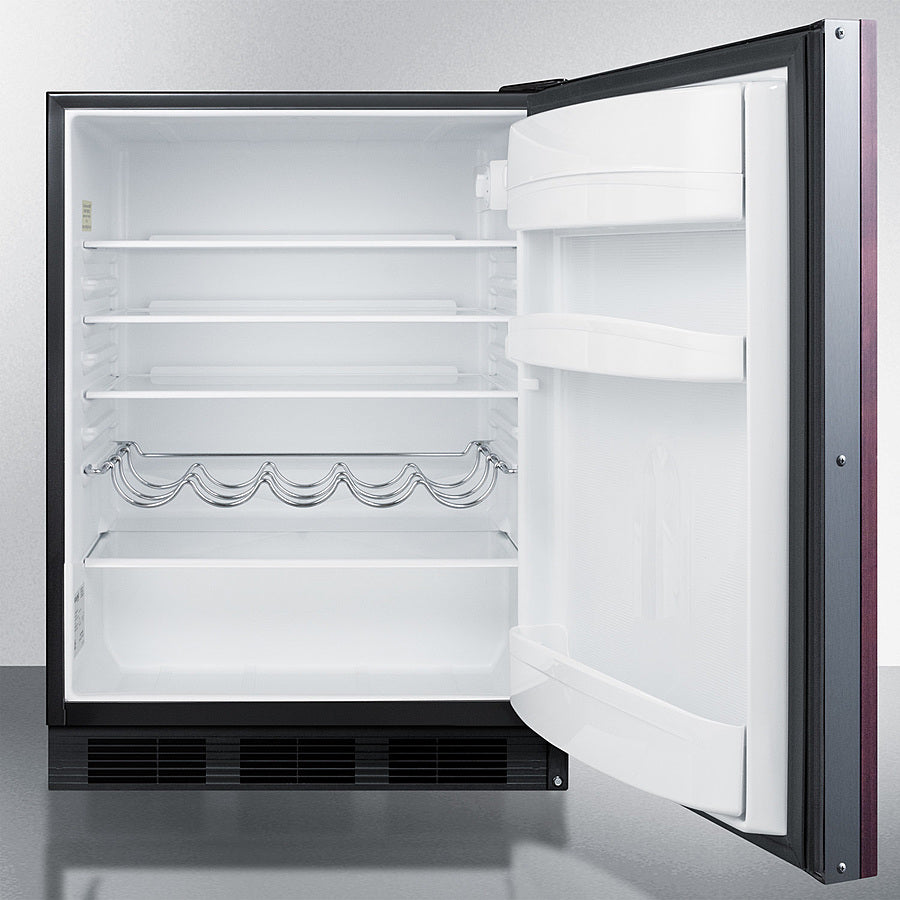

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

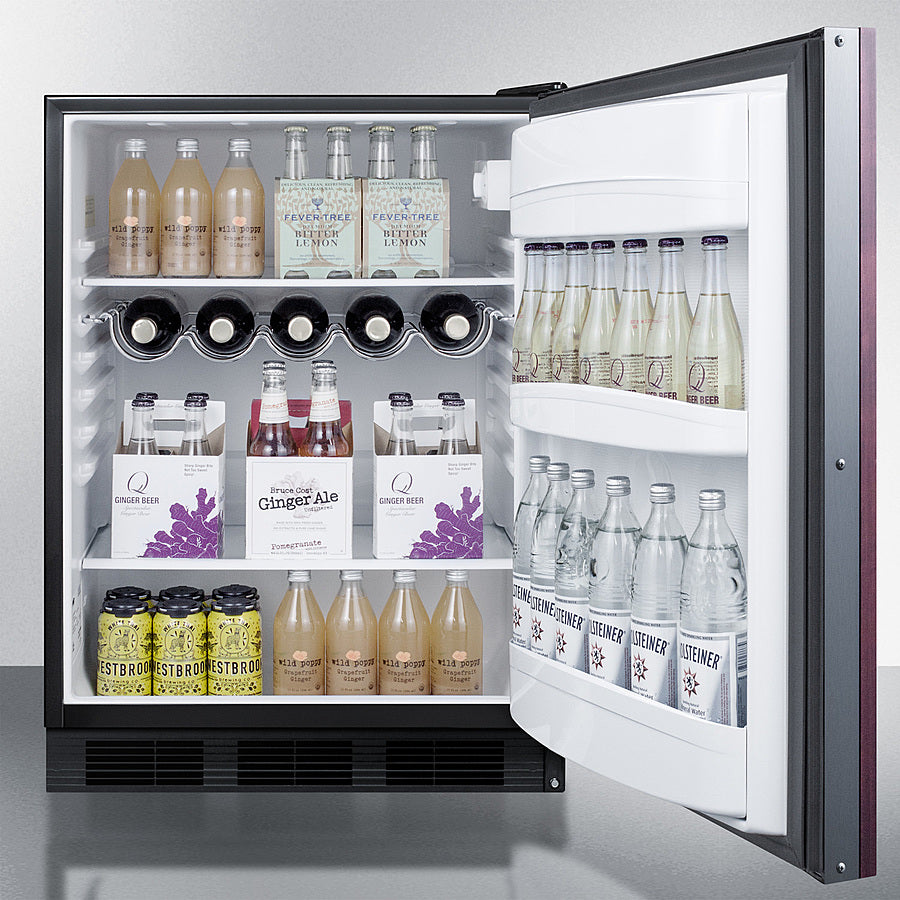

Store tall bottles and condiments right on the door for convenient access
Removable scalloped wine shelf is included to store champagne and wine bottles
Automatically illuminates when you open the door
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator creates a seamless, easy to clean interior

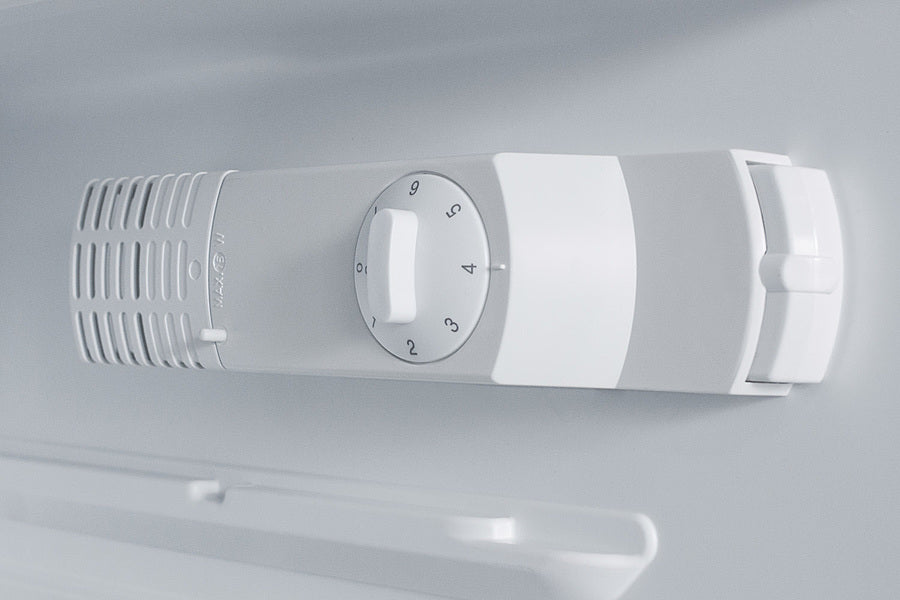

Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management

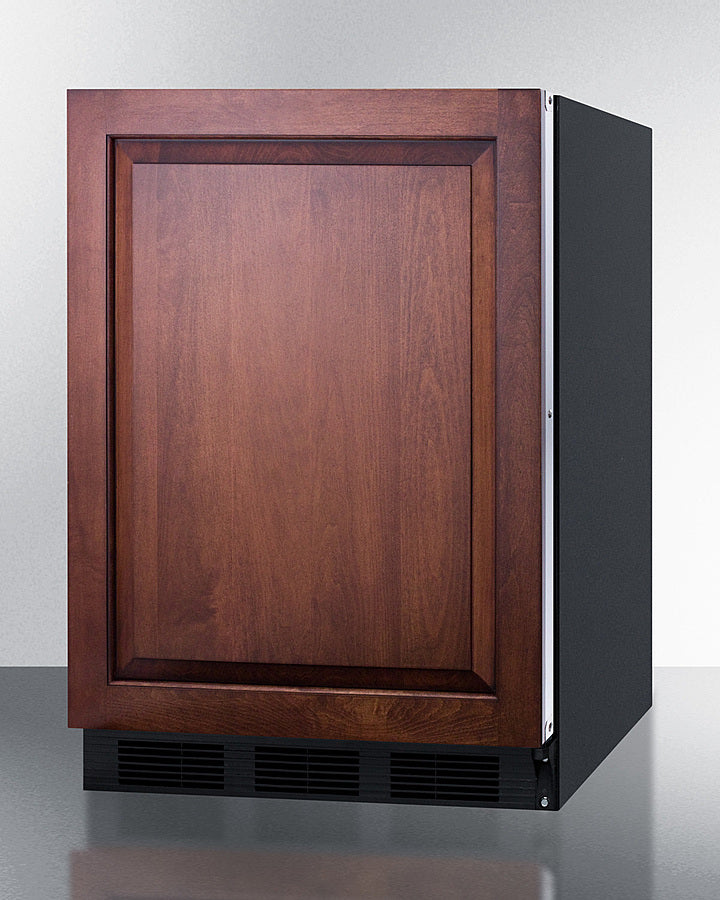

Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
SUMMIT offers the industry?s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24? footprint and 32? height, the AR5BIF is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to create a custom look that blends into your own cabinetry. Customers provide their own handle. Panels should be sized at 23 5/16" W x 28 1/4" H and at least 3/4" thick. Inside, the AR5BIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BIF features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BIF brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. Additional ADA compliant choices are available in a variety of sizes and styles. Browse our website for more options.
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Width | 23.63" (60 cm) |
Depth | 23.0" (58 cm) |
Depth with door at 90? | 45.38" (115 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 307.0kWh/year |
Amps | 1.4 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Shipping Weight | 105.0 lbs. (48 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Glass |
Shelf Qty | 3 |
Full Door Shelf Qty | 3 |
Adjustable Shelves | Yes |
Wine Bottle Shelves | Yes |
Thermostat Type | Dial |
Fan Type | Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 180.0 |
Low Side PSI | 80.0 |
Interior Light | Yes |
Dimensions | |
Interior Height | 26.25" (67 cm) |
Interior Width | 21.0" (53 cm) |
Interior Depth | 18.0" (46 cm) |
Compressor Step Height | 5.5" (14 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
Handle | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||
Exterior | |||||||||||||
|
|||||||||||||
Lock | |||||||||||||
|
|||||||||||||
Interior | |||||||||||||
|
DOWNLOADS
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.Note: Nickel is a component of stainless steel.
