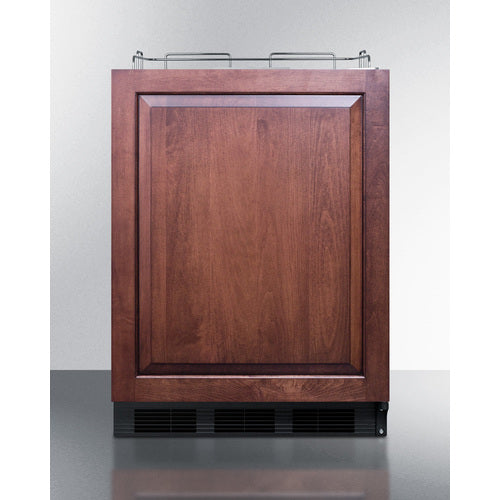

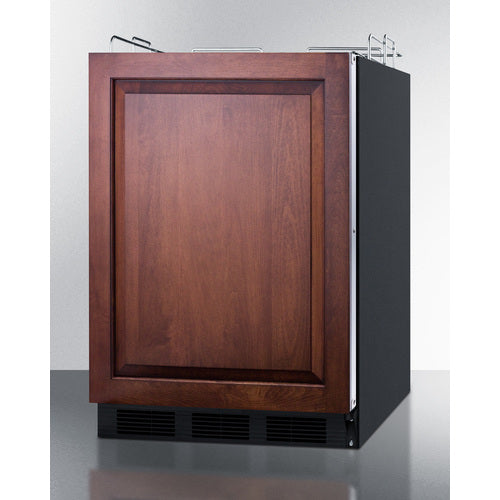

Summit 24" Wide Built-In Kegerator in Panel-Ready Door - ADA Compliant

FEATURES

• ADA compliant height
• Commercially approved
• Built-in capable
• Tap kit not included
• Designed for 1/6 kegs

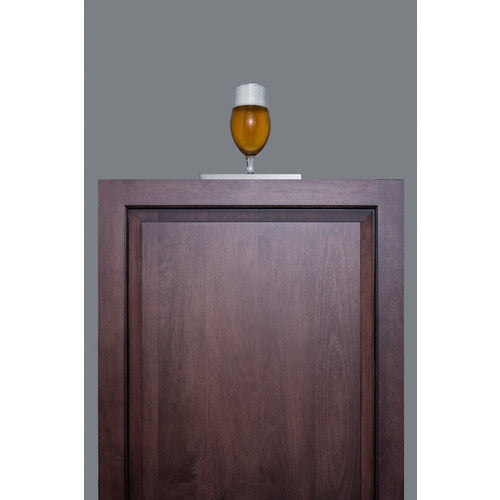

• Panel-ready door
• Adjustable thermostat
• Automatic defrost
• User-reversible door
• Stainless steel drip tray
• Stainless steel guard rail
• Interior light
• Interior CO2 holder
• Stainless steel floor cover
• One piece interior liner
• Hidden evaporator
• Fully finished cabinet
• 100% CFC free

DESCRIPTION

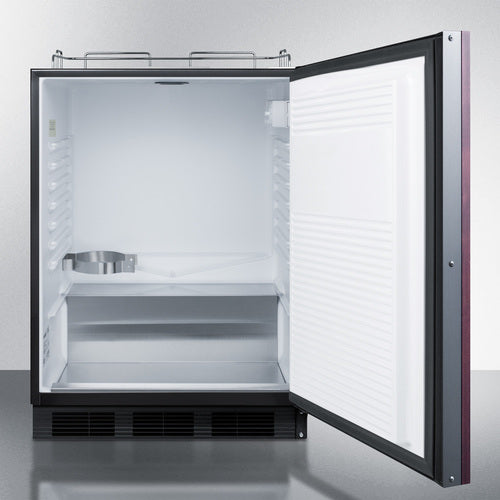

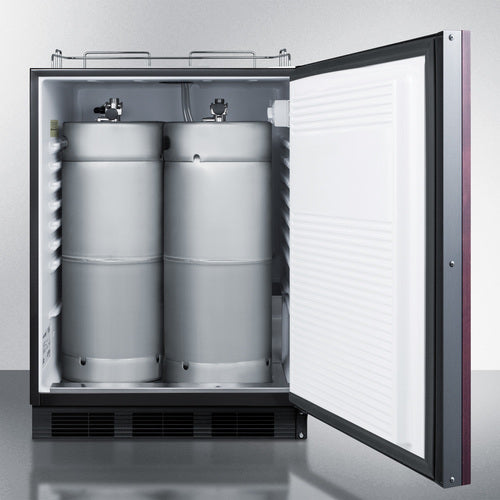

• Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC58BLBIADANKIF is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC58BLBINKIFADA does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system. Inside, the SBC58BLBIADANKIF is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BLBIADANKIF is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors. Browse our complete line for more choices.
•

• DOWNLOADS



BROCHURE
SBC58BLBIADANKIF.pdf





USE & CARE
IF_Instructions_-_General.pdf





USE & CARE
SBC58BL_SBC56G_ADA_Kegerators_User_Manual.pdf

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	22.75" (58 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Shipping Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069739
Kegerator
Door Swing	RHD
Reversible	Factory Reversible
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	0.64 oz.
High Side PSI	180.0
Low Side PSI	80.0
Inter Height	25.75" (65 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	34º to 43ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing DT - Digital thermostat SSK

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

 WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
