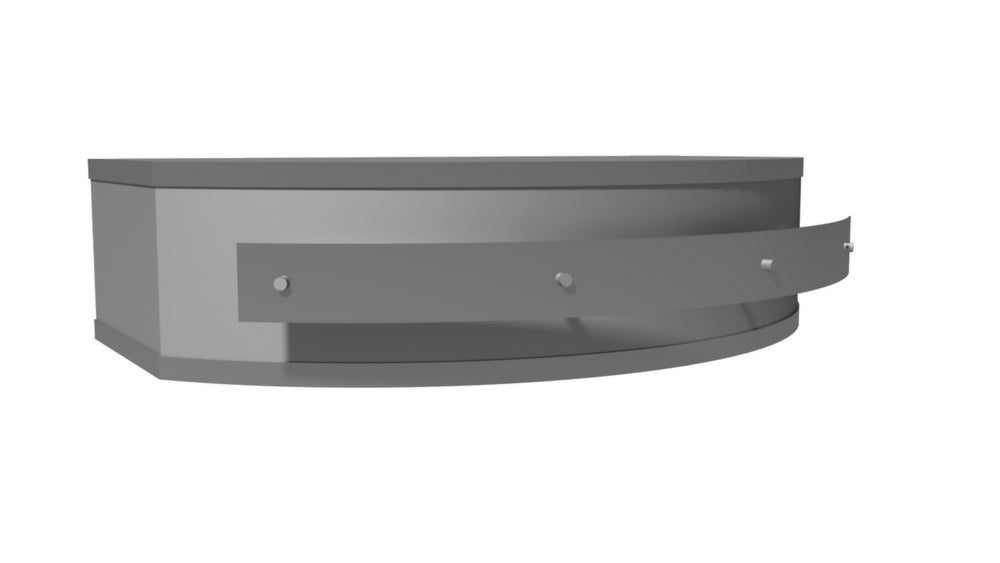

Rounded front with stand-off trim styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need. This model is available in stainless steel with standard mirror stainless trim. All Vent-A-Hood Magic Lung products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit. Recommended mounting height is 24" - 27" above the cooking surface. |
WIDTH : |
48" |
DEPTH : |
21" |
HEIGHT : |
9" |
CFM : |
600 |
SONES : |
6.5 |
Amps : |
4.0 |
Num. Lights : |
3 |
CONNECTION DIAGRAM 600 CFM B200 Dual Blower (Top View) |
REC. MOUNTING HEIGHT *Exceeding recommended mounting height may compromise performance. |
Model |
Volts |
Amps+ |
Hz |
RPM |
CFM SP@0.0" |
Equiv. CFM$ |
CFM SP@0.1" |
CFM SP@0.2" |
CFM SP@0.3" |
Min. Round
|
Sones# |
| B200 Dual | 115 | 4.0 | 60 | 1550 | 600 | 900 | 531 | 480 | 430 | 8" (50 sq. in.) | 6.5 |
+ Add 2.5 amps for each warming light. This model is equipped with LED lighting: (2 lights: 30" - 41", 3 lights: 42" - 48").
$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
