Product Summary

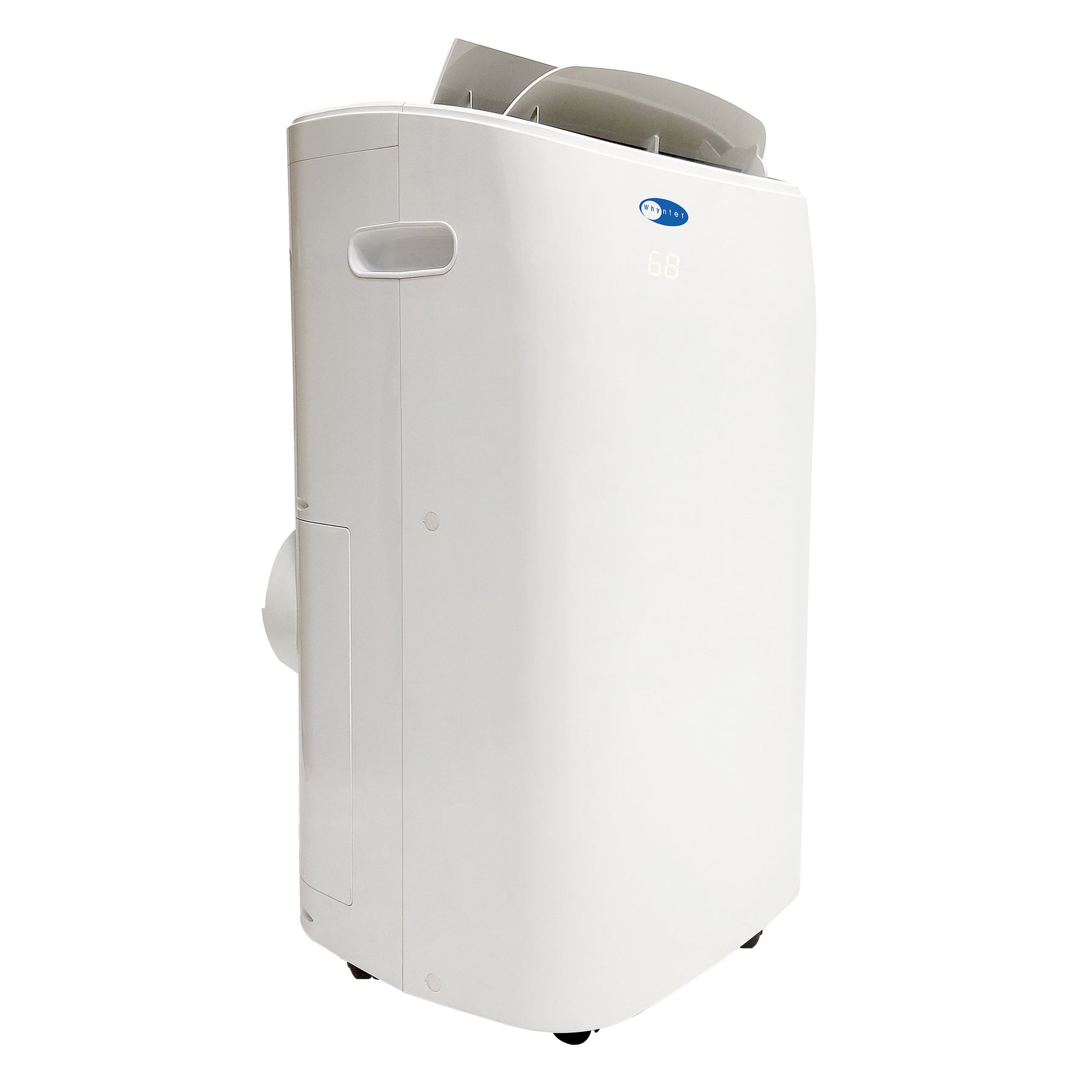

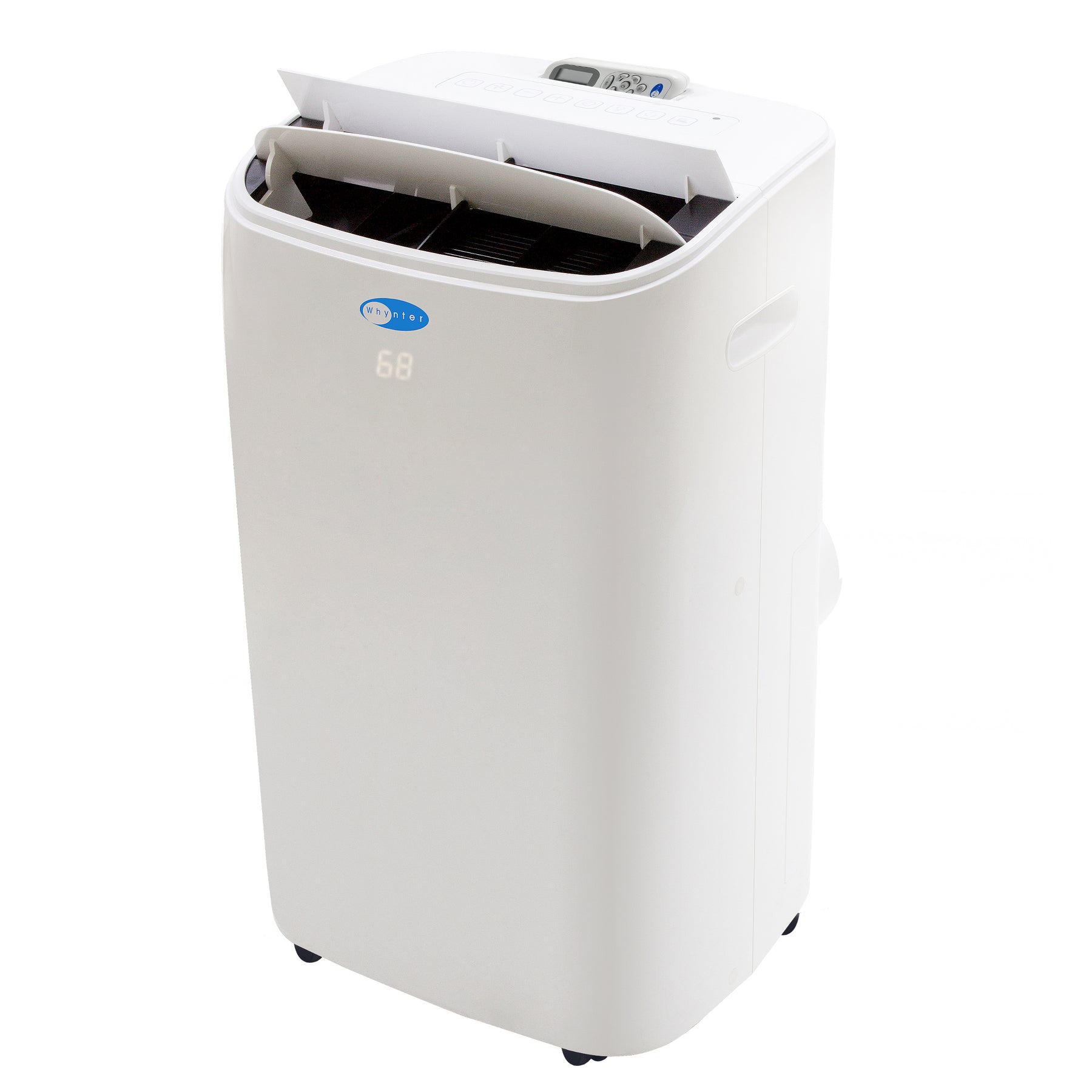

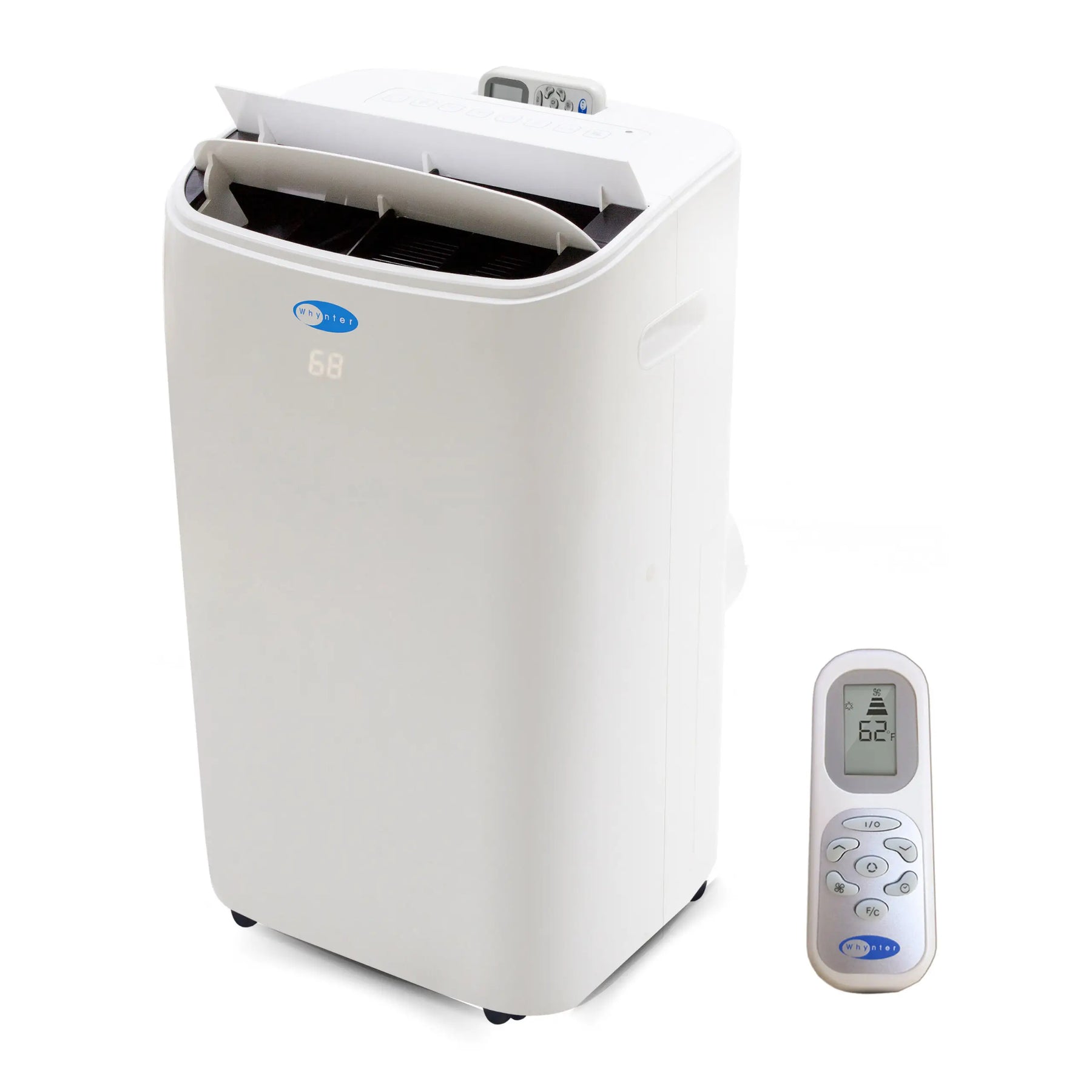

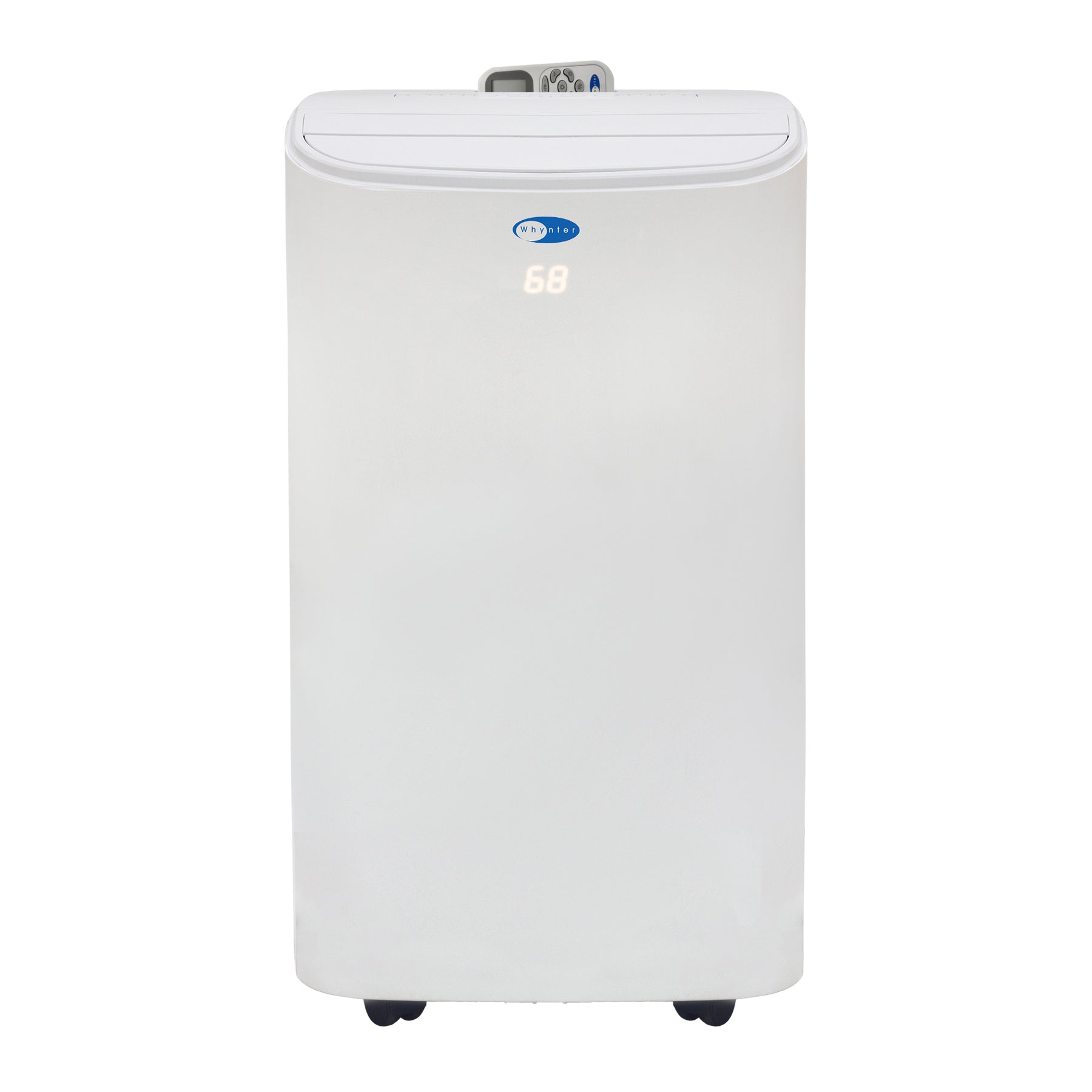

Achieve year-round comfort with the Whynter ARC-147WFH 14,000 BTU (10,000 BTU SACC) Dual Hose Portable Air Conditioner. Designed with heater, dehumidifier, and fan functions, this unit provides tailored climate control for up to 500 sq. ft. A HEPA and Activated Carbon filter ensures clean air quality, while the remote control offers convenient operation. The efficient dual-hose system maintains optimal temperature quickly, and its sleek white design complements any space. Trust Whynter for high-efficiency portable air conditioning and heating solutions.
Specification
| ASHRAE BTU |
14,000 BTU
|
| SACC BTU |
10,000 BTU, 8,200 BTU heating
|
| Color |
White
|
| Coverage Sq. Ft. |
500 sq. ft.
|
| Dehumidifying Capacity |
134 pints/day
|
| Exhaust Hose Diameter |
5.9" diameter
|
| Exhaust Hose Length |
Max. 59"
|
| Window Kit Length |
Minimum length: 20" | Maximum length: 46”
|
| Fan Speed |
3 speed
|
| Filter Type |
HEPA and activated carbon filter
|
| Heat Mode |
Yes
|
| Hose System |
Dual Hose
|
| Louver Type |
Automatic Swing
|
| Maximum Power Consumption |
1341W / 11.8A
|
| Noise level (dBA) |
<51 low/ <54 high
|
| Pump Feature |
Yes
|
| Refrigerant |
R32
|
| Storage Bag |
Yes
|
| Temperature Range |
Cooling: 61° – 89°F | Heating: 61° – 77°F
|
| Upper Gravity Drain Port |
Yes
|
| Unit Dimensions |
18.74"W x 30.87"H x 15.81"D
|
Features
● White color
● Cooling: 14000 BTU (ASHRAE) / 10000BTU (SACC)
● SACC: 8200 BTU HEATING
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● Four operational modes: Cool, Dehumidify, Heat, and Fan
● Full thermostatic control: Cooling: 61° – 89°F | Heating: 61° – 77°F

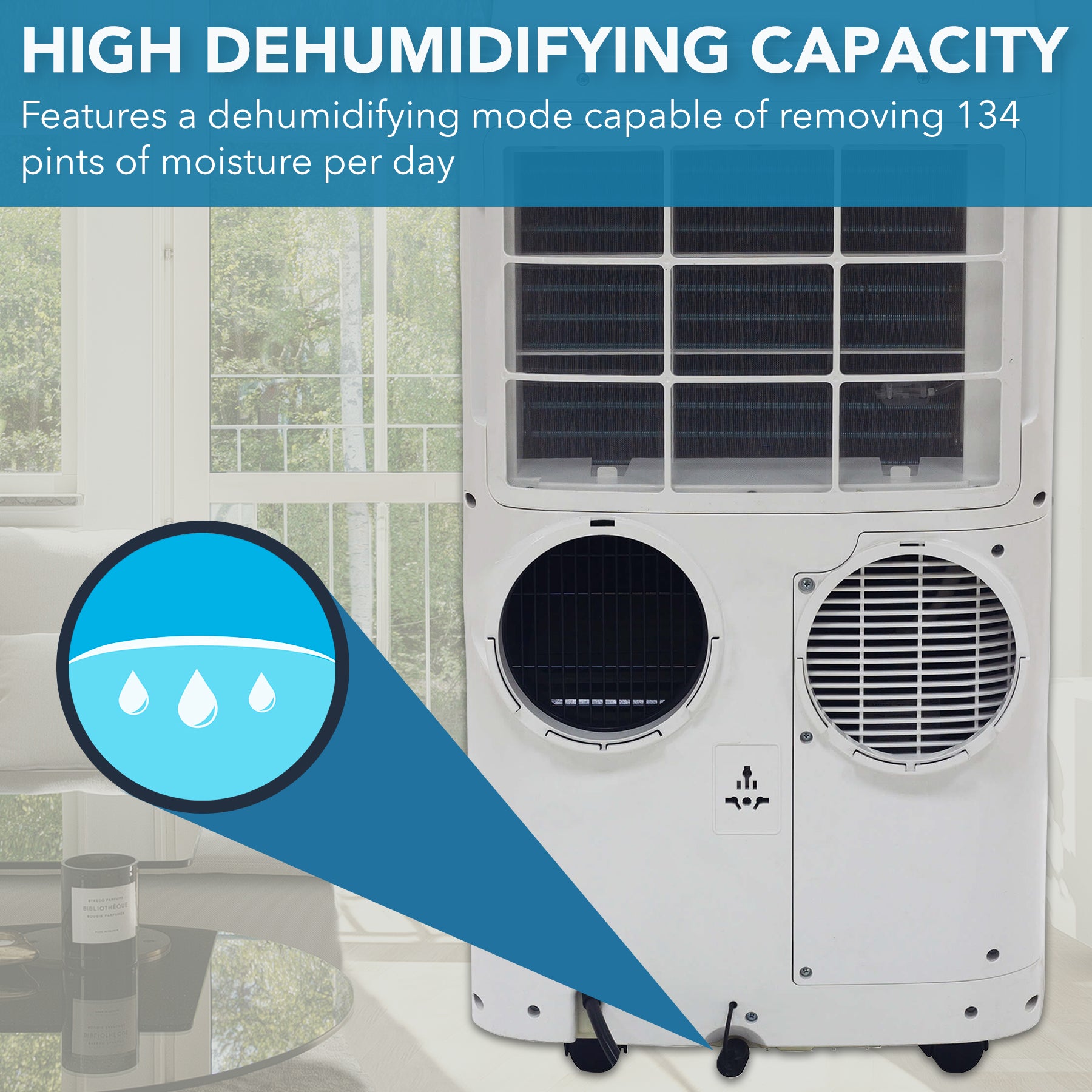

● Dehumidifying Capacity: 134 Pts / day

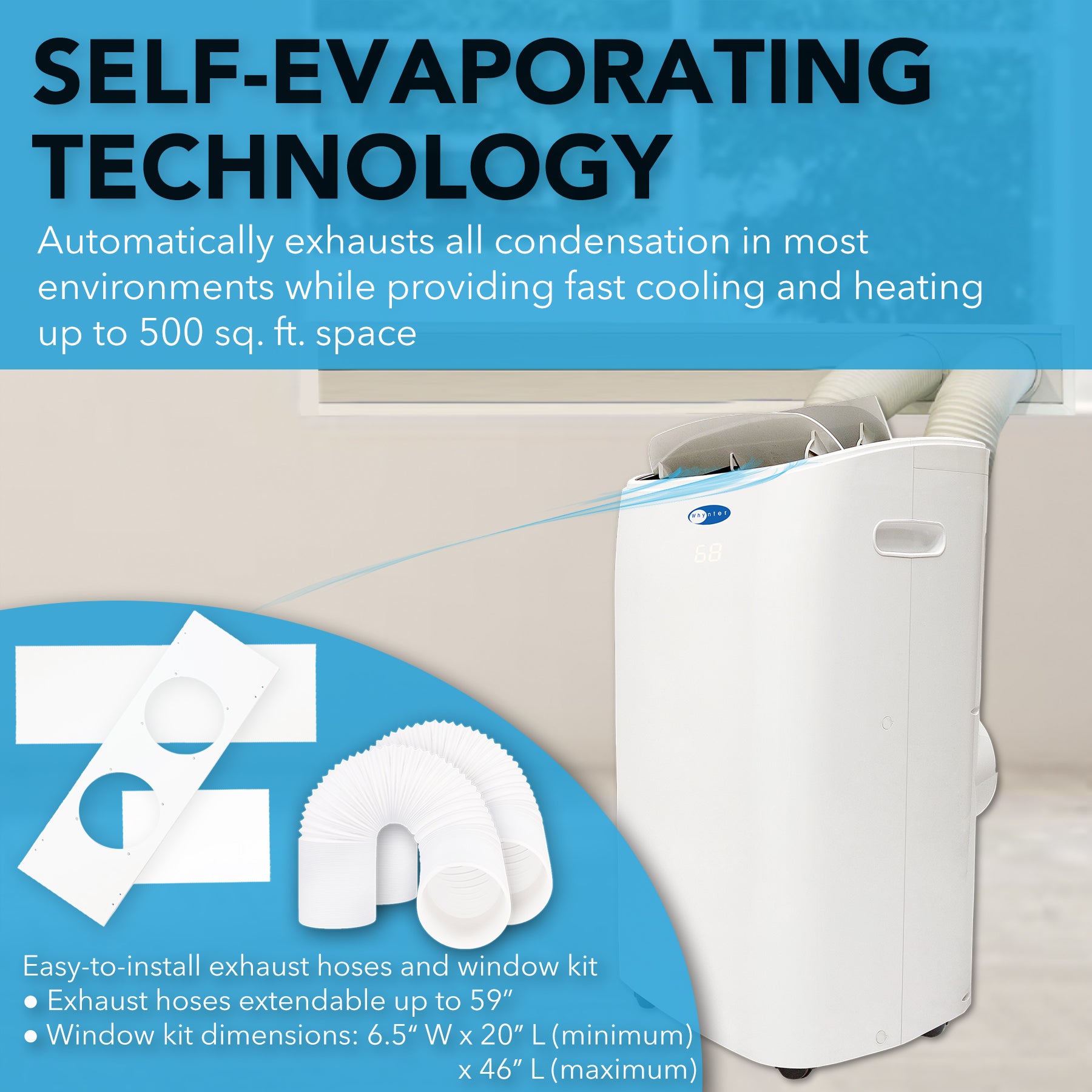

● Patented auto drain function fully exhausts all condensate automatically
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug

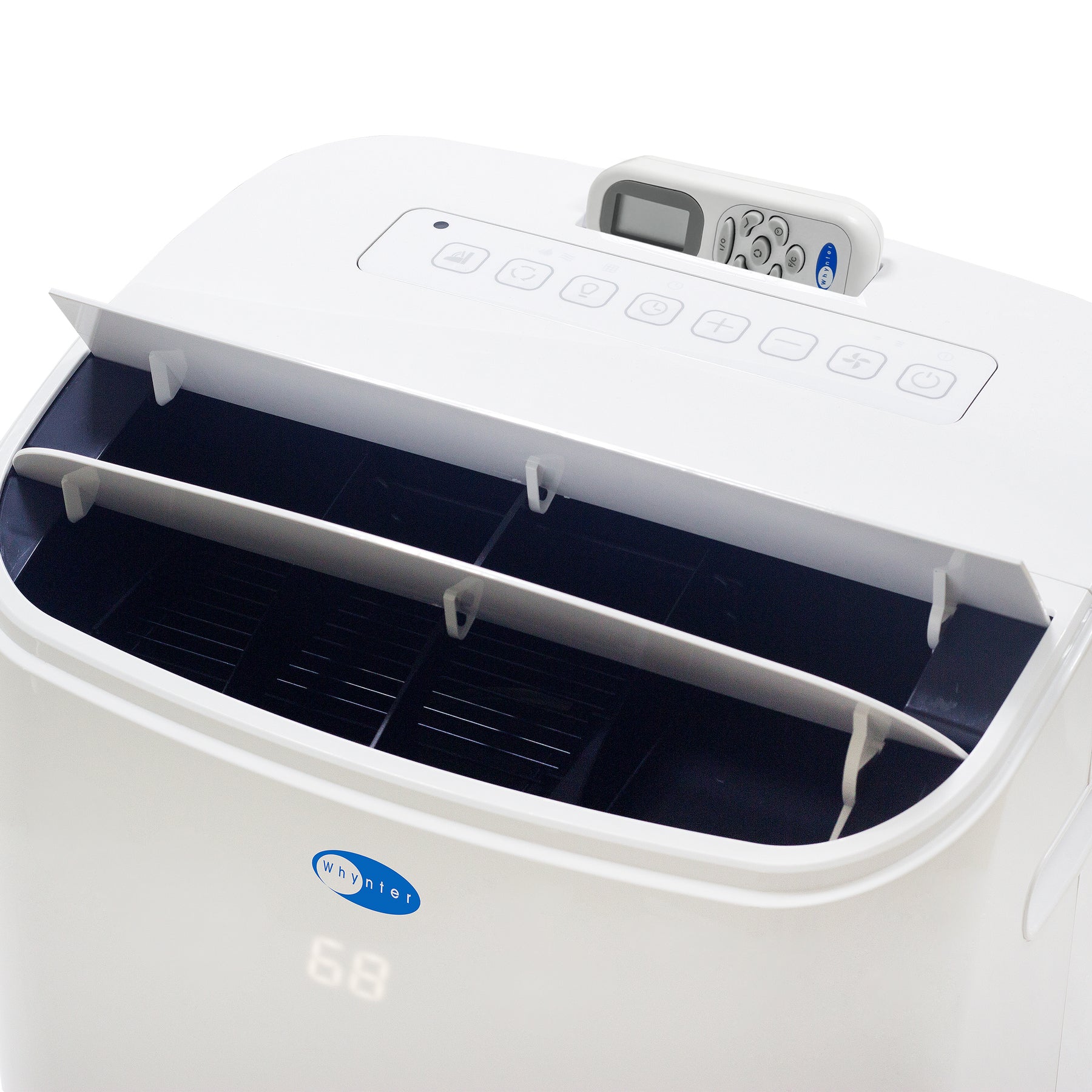

● 3 speed fan with directional air discharge louver

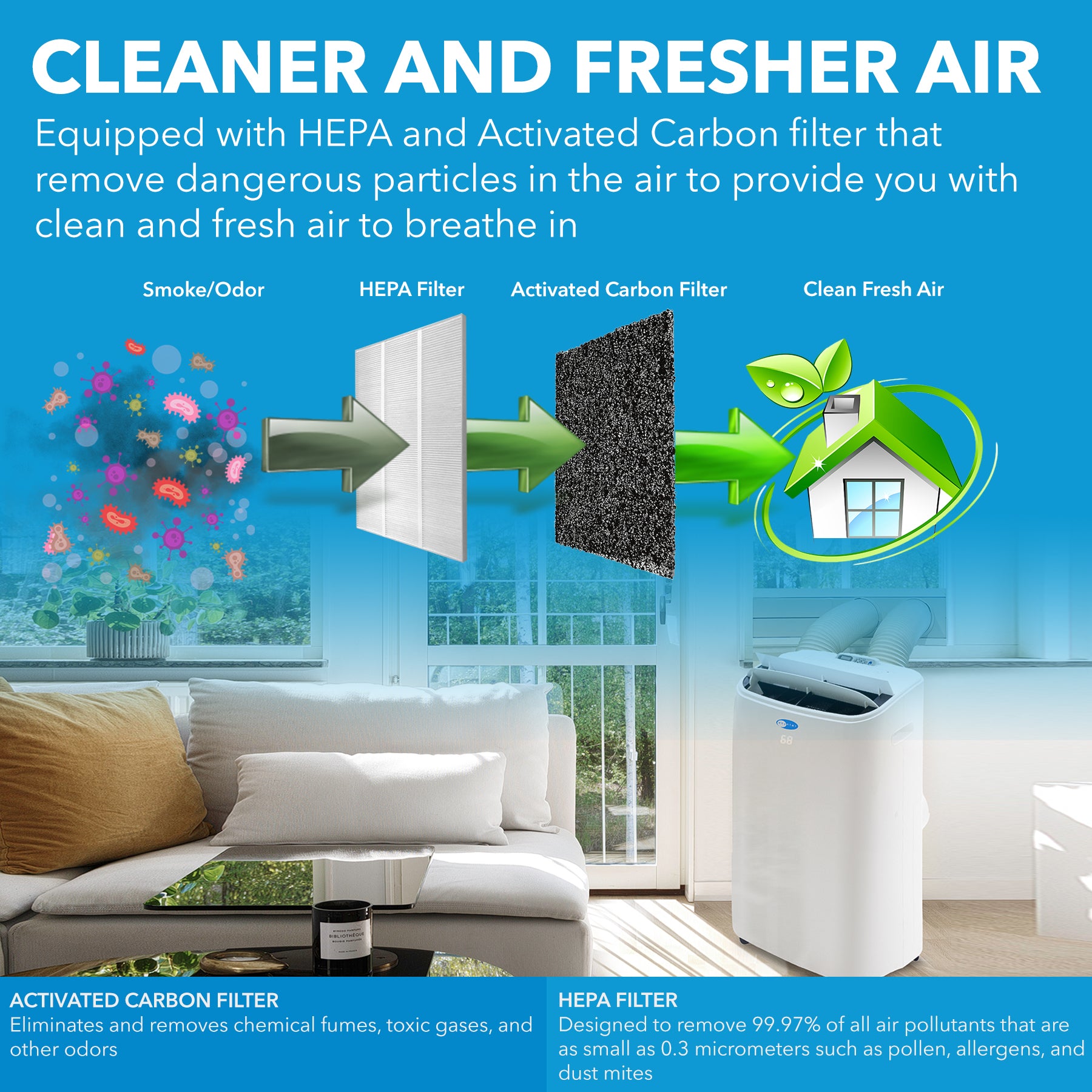

● Equipped with HEPA and activated carbon filter
● Casters for easy mobility

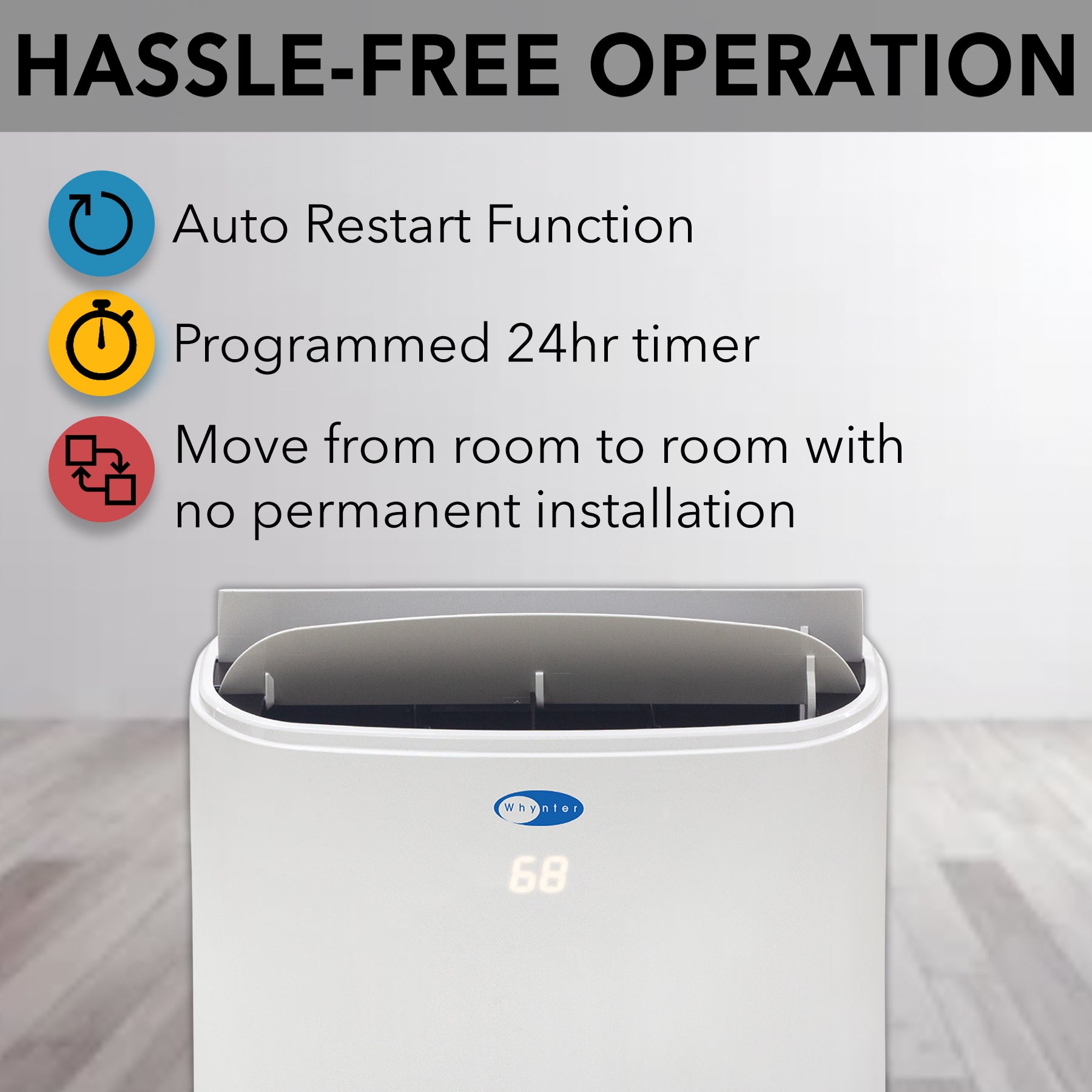

● 24 hour programmable timer
● Noise level (dBA): <51 low/ <54 high
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable Hose: Length up to 59″
● Window Kit : 6.5″ W x 20″ L (minimum), 46″ (maximum)
● Intake and Exhaust Hoses: 5.9″ diameter
● Hose Connector: 5.9″ diameter
● Air Flow (at high speed): 460 m3/h | 270 CFM
● Maximum cooling power consumption: 1341W / 11.8A
● Power supply: 115 V / 60Hz / 1 Phase
● CEER: 7.83

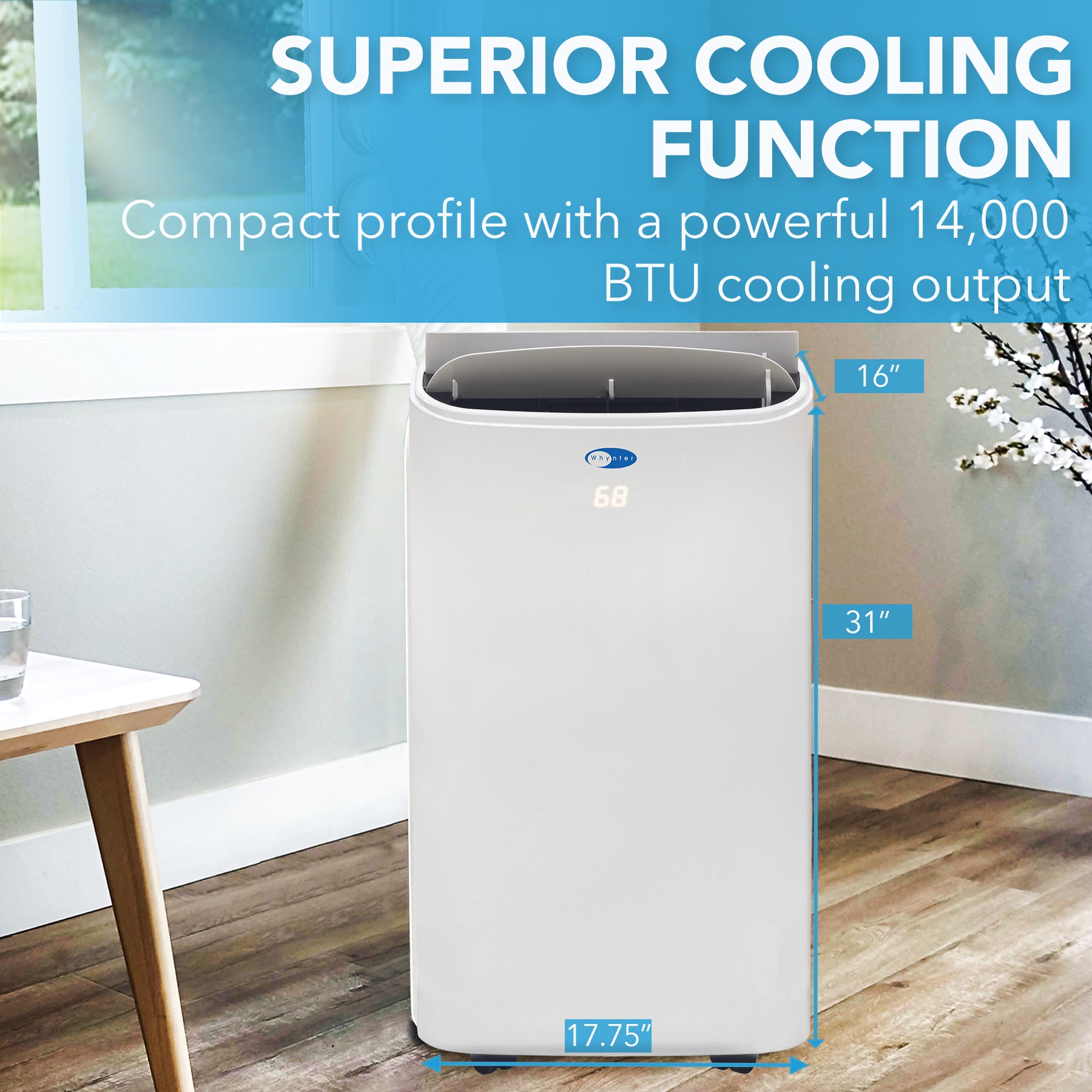

● Unit dimensions: 18.74″W x 30.87″H x 15.81″D
● Package dimensions: 25″ D x 20″ W x 34″ H
● Net weight: 77 lbs
● Gross weight: 97 lbs
● UL listed
● UPC 850014459154
*This unit comes with one year warranty and three year warranty on the compressor.
Accessories
Intake/Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
ARC-WK-DUALN-WF/H
(Dual Hose Window Kit for ARC-147WF, ARC-147WFH (Including Screws & Nuts)
Available at:
Ambient Stores
ARC-EH-TYPE-L
(Exhaust/Intake Hose with 5.9″ diameter)
Available at:
Ambient Stores
ARC-HTEXHSTHSCNNCT580-BS
(Increaser – Hose connector to unit with diameter 6.0″)
Available at:
Ambient Stores
ARC-HTEXHSTHSCNNCT590-BS
(Increaser – Hose connector to window kit with diameter 6.0″)
Available at:
Ambient Stores
ARC-CF-147WF-H
Activated Carbon Filter
Available at:
Ambient Stores
ARC-HEPAFIL-147WF-H
HEPA Filter
Available at:
Ambient Stores
ARC-STRGBG-B
Storage bag
Available at:
Ambient Stores
