Description
Whynter is going GREEN! With this new Eco-friendly CFC free, lead free and high energy efficiency portable air conditioner, you can stay cool while keeping with better environmental standards and reducing energy consumption.
This GREEN portable air conditioner is extremely mobile and can be easily setup in almost any indoor location and are most commonly used in computer / server rooms, bedrooms, classrooms and garages / workshops.
This Whynter GREEN ARC-110WD portable air conditioner features the ECO-FRIENDLY CFC free GREEN R-410A refrigerant and lead free RoHS compliant components.
The leading attribute of this model is its compact size and dual hose system which facilitates greater space utilization and more efficient cooling. With 11,000 BTU of cooling power, the Whynter ARC-110WD is an ideal solution for the warm spots in your home or office. Portable and easy to set up, this is one of the few portable air conditioners that offers cooling relief for any area where excess humidity and heat cannot be remedied by traditional air conditioning.
This unit features the advance self-evaporating technology, which uses and recycles moisture collected during cooling process to produce cool air. It comes equipped with all of the great features of the Whynter air conditioner line.
This unit can cool up to a 350 sq. ft. space (ambient temperature and humidity may influence optimum performance).
Comes with a protective cover with pocket that will protect your portable AC unit plus store your exhaust hose, window kit, remote control and user manual when not in use. This protective cover will keep dust and dirt from collecting on the unit while it is in storage.
Additional Information
Color
White
Coverage Sq. Ft.
350 sq. ft
Dehumidifying Capacity
81 pints/ day
Exhaust Hose Length
Max. 60"
Fan Speed
4 speed
Filter Type
Carbon air filter and washable pre-filter
Heat Mode
No
Hose System
Dual Hose
Louver Type
Fixed
Maximum Power Consumption
1000W/ 9.2A
Noise level (dBA)
< 56
Pump Feature
No
Refrigerant
R-410A
Replacement Filter
"Carbon: ARC-CF-110WD"
Replacement Hose
"small hose: ARC-EH-TYPE-S large hose: ARC-EH-TYPE-L"
Replacement Window Kit
ARC-WK-DUALN
SACC BTU
6,390.25 BTU
Storage Bag
Yes
Temperature Range
61°F – 89°F
Unit Dimensions
17.3" W x 15.4" D x 30.5" H
Upper Gravity Drain Port
Yes
Window Kit Length
6.5" W x 20" (min)/ 46" (max) L
Features & Specification
White color
● 11,000 BTU Cooling
● ECO- FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Self evaporating design exhausts most or all condensate automatically in most environments
● Four operational modes: Air conditioner, Fan, Dehumidifier, Automatic mode
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 81 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 4 fan speeds
● Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <56
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 47″)
● Upgraded Plastic window kit included
● Large Exhaust Hose: 5.9″ diameter
● Large Hose Connector: 5.9″ diameter with 5.0″ diameter reducer
● Small Intake Hose: 5.0″ diameter
● Small Hose Connector: 5.0″ diameter
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-410A
● Air Flow (at high speed): 300 m3/h / 177 CFM
● Maximum power consumption: 1040 W / 9.5 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 17.3” W x 15.4“ D x 30.5” H
● Package dimensions: 18.7” W x 19.5” D x 35” H
● Net weight: 65 lbs
● Gross weight: 70 lbs
● UL listed
● UPC 850956003187
Resources & Manual
USER MANUAL
Troubleshooting
FAQs

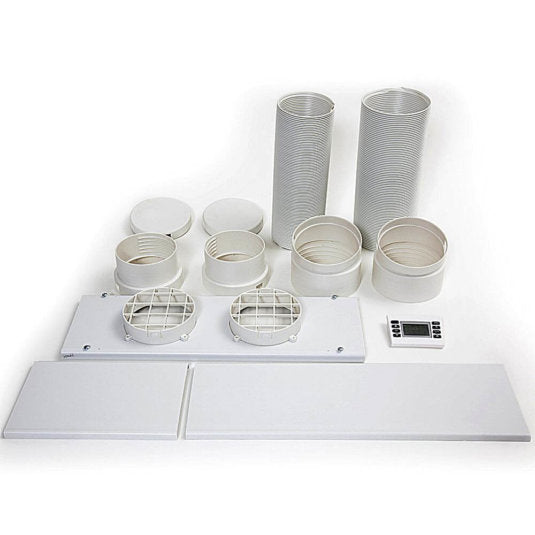

Accessories
Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 4.3” diameter intake and 5.0″ diameter exhaust hose set or a 5.0” diameter intake and 5.9″ diameter exhaust hose set and/or connectors listed below. Please make sure to measure your existing hoses before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
ARC-EH-1113-SET (Whynter Intake 4.3” diameter / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com
ARC-EH-TYPE-L-S-SET (Whynter Intake 5.0” diameter/ Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com
Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 4.3” diameter intake and 5.0″ diameter exhaust hose connector set or a 5.0” diameter intake and 5.9″ diameter exhaust hose connector set listed below. Please make sure to measure your existing hoses before ordering additional accessories.
ARC-HCSET-110-131V1
(Whynter hose extender set for 4.3” diameter intake and 5.0″ diameter exhaust hose)
Available at:
Ambient Stores
ARC-HCSET-110-131V2
(Whynter hose extender set for 5.0” diameter intake and 5.9″ diameter exhaust hose)
Available at:
Ambient Stores
Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com
Activated Carbon Filter: ARC-CF-12S
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com
Storage Bag: ARC-STRGBG-B
Whynter portable air conditioner storage bag
Available at:
Ambient Stores
Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com
Optional Upper Drain Hose: ARC-TYPN-UDPH
Whynter optional upper drain hose for continuous gravity drainage setup
Available at:
Ambient Stores
Complete Accessories Set: ARC-ACC-DUSETG2-V2
Complete Ventilation Set for ARC-110WD
Available at:
Ambient Stores
