Description
Whynter is going GREEN! With this new Eco-friendly CFC free, lead free and high energy efficiency portable air conditioner, you can stay cool while keeping with better environmental standards and reducing energy consumption.

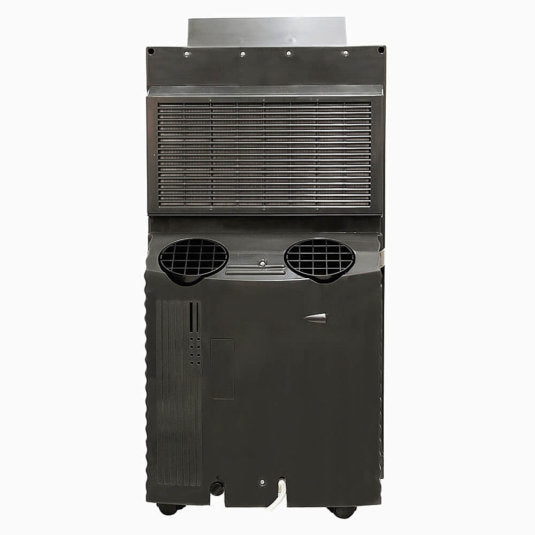

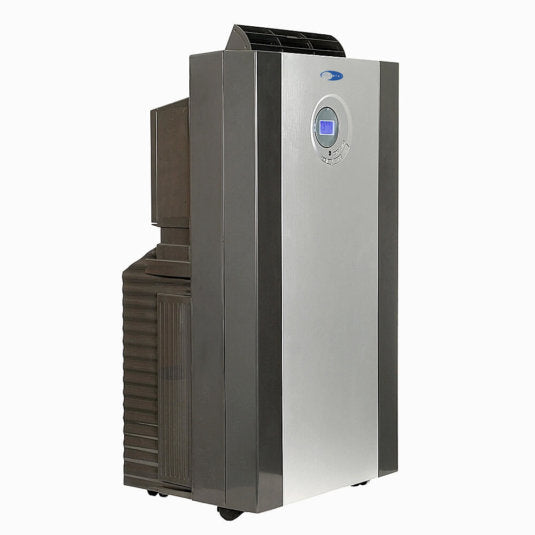

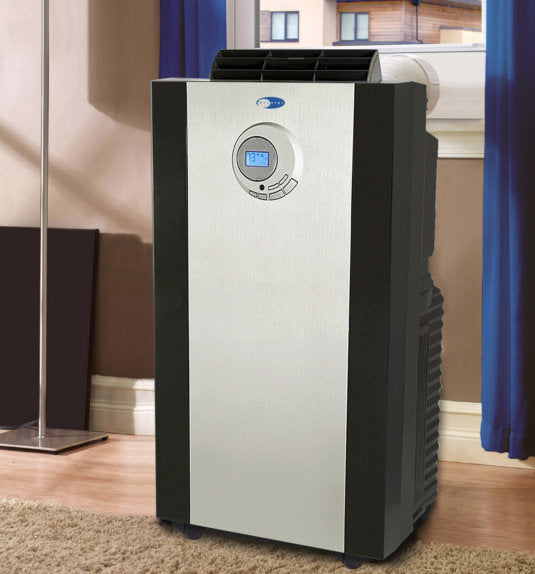

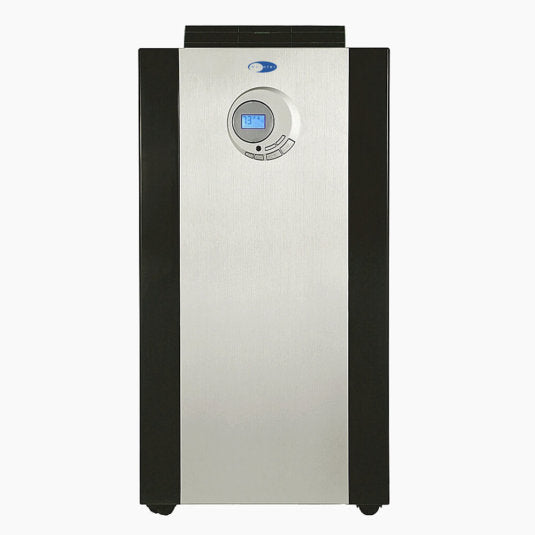

This Whynter GREEN ARC-143MX portable air conditioner features the ECO-FRIENDLY CFC free GREEN R-410A refrigerant and lead free RoHS compliant components.
This unit features a patented advance auto-drain technology, which uses and recycles moisture collected during the cooling process to produce cool air. The dual hose operation provides fast cooling.
Designed with specialized commercial applications in mind, the ARC-143MX is ideal for use with server rooms, data centers, wiring closets or any space where high efficiency cooling and low maintenance is a requisite. The unit helps to maintain optimal operating conditions by, cooling, dehumidifying and filtering the ambient air.
This Whynter portable air conditioner comes with the 3M™ High Air Flow (HAF) air filter which is designed to removes particles such as dust, pet hair and dander, that helps inhibit the growth of mold and mildew, and the micro-structured electrostatically charged filtration media traps and retains particles. This enhanced air filtration system is especially important in maintaining particle-free air around the mission critical equipment. Equipped with an auto-restart function, temperature based operation and timer settings, this unit can function as either your primary or a backup cooling application.
This unit can cool up to a 500 sq. ft. space (ambient temperature and humidity may influence optimum performance).

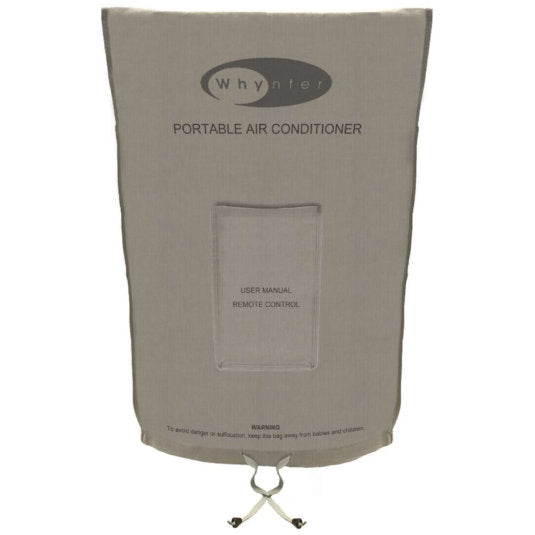

Comes with a protective cover with pocket that will protect your portable AC unit plus store your exhaust hose, window kit, remote control and user manual when not in use. This protective cover will keep dust and dirt from collecting on the unit while it is in storage.
Additional Information
| ASHRAE BTU |
14,000 BTU |
|---|---|
| Color |
Black, Platinum |
| Coverage Sq. Ft. |
500 sq. ft. |
| Dehumidifying Capacity |
91 pints/ day |
| Exhaust Hose Length |
Max. 60" |
| Fan Speed |
3 speed |
| Filter Type |
3M© Filter and SilverShield washable pre-filter |
| Heat Mode |
No |
| Hose System |
Dual Hose |
| Louver Type |
Manual adjust with manual side to side |
| Maximum Power Consumption |
1250W/ 10.8A |
| Noise level (dBA) |
< 56 |
| Pump Feature |
No |
| Refrigerant |
R-410A |
| Replacement Filter |
Carbon: ARC-CF-14S 3M Antimicrobial: ARC-FIL-3M |
| Replacement Hose |
ARC-EH-TYPE-L |
| Replacement Window Kit |
ARC-WK-DUALN |
| SACC BTU |
9,500 BTU |
| Storage Bag |
Yes |
| Temperature Range |
61°F – 89°F |
| Unit Dimensions |
19" W x 16" D x 35.5" H |
| Upper Gravity Drain Port |
No |
| Window Kit Length |
6.5" W x 20" (min)/ 46" (max) L |
Features & Specification
Two tone design exterior- Platinum and Black
● 14,000 BTU Cooling (ASHRAE-128 Standard) / 9,500 BTU (DOE 2017 Standard)
● Dual hose operation
● ECO-FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Air conditioner, fan or dehumidifier
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 91 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds
● Washable pre-filter removes large particles such as pet hair and dirt.
● 3M™ High Air Flow (HAF) air filter:
– Removes particles such as dust and dander
– Micro-structured electrostatically charged filtration media traps and retains particles
– Maintains a particle-free air around the mission critical equipment
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <56
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Exhaust/ Intake Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-410A
● Air Flow (at high speed): 384 m3/h / 226 CFM
● Maximum power consumption: 1250 W / 10.8 Amps
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 19″ W x 16″ D x 35.5″ H
● Package dimensions: 21″ W x 19″ D x 46″ H
● Net weight: 79 lbs
● Gross weight: 100 lbs
● UL listed
● UPC 850956003088
Resources & Manual
USER MANUAL
Troubleshooting
FAQs
Accessories
Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
Available at:
Ambient Stores
Amazon.com
ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
Available at:
Ambient Stores
Amazon.com
Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET2-V1
(Two Whynter hose connector sets for 5.0″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
Available at:
Ambient Stores
ARC-HCSET2-V2
(Two Whynter hose connector sets for 5.9″ diameter hose)
Available at:
Ambient Stores
Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
Available at:
Ambient Stores
Amazon.com
Activated Carbon Filter: ARC-CF-14S
Whynter Activated Carbon Filter
Available at:
Ambient Stores
Amazon.com
3M™ Antimicrobial Filter: ARC-FIL-3M
Whynter 3M™ Antimicrobial Filter
Available at:
Ambient Stores
Amazon.com
Storage Bag: ARC-STRGBG-A
Whynter portable air conditioner storage bag
Available at:
Ambient Stores

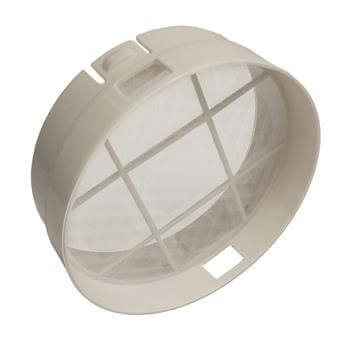

Optional Intake Hose Pre-Filter: ARC-IHF
Whynter Intake Hose Pre-filter
Available at:
Ambient Stores
Amazon.com
Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
Available at:
Ambient Stores
Amazon.com
Complete Accessories Set: ARC-ACC-DUSETG1-V2
Complete Ventilation Set for ARC-14S
Available at:
Ambient Stores
